IP65 Waterproof P5 LED Module Outdoor With Common Cathode Circuit
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P5 Outdoor waterproof LED display module |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P5 Outdoor Waterproof LED Display Module | Size: | 320×360mm |
|---|---|---|---|
| Pixel Pitch: | 5mm | Resolution: | 64×72 |
| Features: | Common Cathode Circuit | Brightness: | 7500-8500cd/sqm |
| Lamp Type: | SMD2727 | Weight: | 1.95±0.05 |
| High Light: | Waterproof P5 LED Module Outdoor,IP65 P5 LED Module Outdoor,Common Cathode led module p5 |
||
Product Description

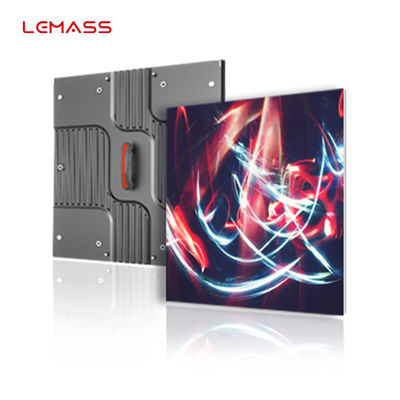

P5 Outdoor waterproof LED display module 320*360mm MSE Plus Series common cathode circuit
Description:
Outdoor high brightness LED Displays using SMD technology:
Lemass Display’s outdoor LED screens are manufactured using the highest quality LED components offering stunning brightness, contrast and colour reproduction. Our outdoor LED screens have an IP65 waterproof rating meaning they are built to withstand all weather conditions.
Quick Detail:
· Ultra-thin&light aluminum structure
· Low power consumption, efficient heat dissipation
· AI intelligent module
· Color gamut up to 130% DCI-P3
· Filter harmful blue light for eye protection
· Support 3D/HDR display
Specifications:
| Parameter Item | MSE5 Plus |
| Pixel Pitch (mm) | 5 |
| Pixel Density (pixels/sqm) | 40,000 |
| Module Resolution | 64×72 |
| Mask | Standard |
| Lamp Type | SMD2727 |
| Module Size (mm) | 320×360×19 |
| Module Weight (kg) | 1.95±0.05 |
| Brightness (cd/sqm) | 7500/8500 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP65 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | ≥3840 |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤570, Ave:≤190 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

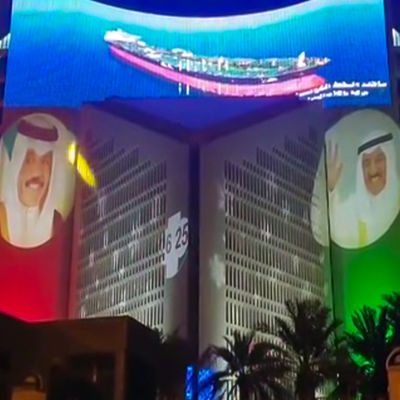

Widely used in shopping malls, exhibition halls, conference centers, etc.
