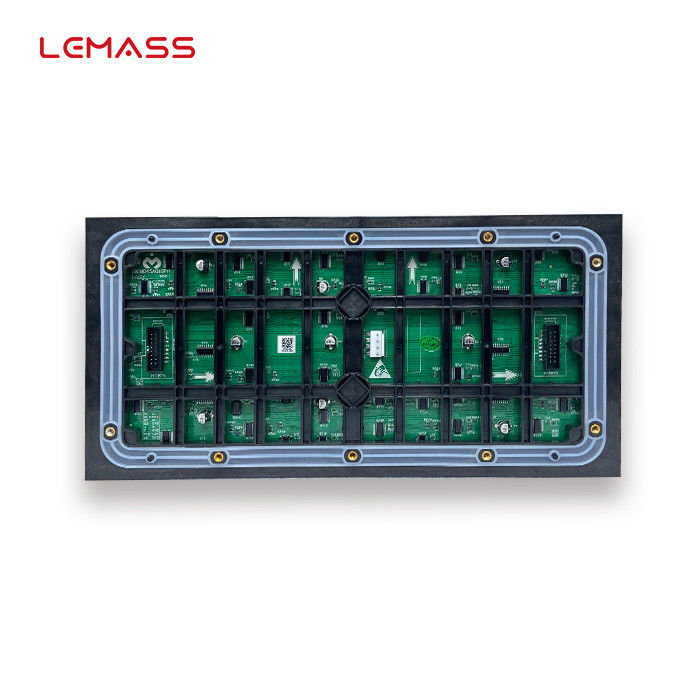

P3 Outdoor SMD LED Module 320×160mm MSG Series With UL94V-0 Fire Rating
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P3 Outdoor SMD LED Module |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P3 Outdoor SMD LED Module | Size: | 320×160mm |
|---|---|---|---|
| Pixel Pitch: | 3.076mm | Resolution: | 104×52 |
| Features: | Waterproof | Brightness: | 4500cd/sqm |
| Lamp Type: | SMD1415 | Weight: | 0.55±0.05kg |
| High Light: | P3 Outdoor SMD LED Module,160mm Outdoor SMD LED Module,SMD P3 Outdoor LED Module |
||
Product Description
P3 Outdoor SMD LED Module 320*160mm MSG Series Fire rating: UL94V-0
Description:
State of the art commercial grade digital advertising screens all with warranty and lifetime technical support. Our fantastic range of professional advertising screens include 4K displays, PCAP touch screens, digital wayfinding screens, ultra-bright sunlight readable screens and so much more along with digital advertising screen mounts and brackets.
Quick Detail:
· Waterproof IP66, Fire rating: UL94V-0
· 160° ultra-wide viewing angle
· Pixel by pixel correction
· Support 3D/HDR display
· High refresh and high quality drive IC
· Low temperature rise, excellent heat dissipation
Specifications:
| Parameter Item | MSG3S |
| Pixel Pitch (mm) | 3.076 |
| Pixel Density (pixels/sqm) | 105,625 |
| Module Resolution | 104×52 |
| Mask | Standard |
| Lamp Type | SMD1415 |
| Module Size (mm) | 320x160x15 |
| Module Weight (kg) | 0.55±0.05 |
| Brightness (cd/sqm) | 4500 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | Front IP43, Rear IP65 |
| Intelligent Storage | NO |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤700,Ave:≤235 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10~+40 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range(Rh) | 10%80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

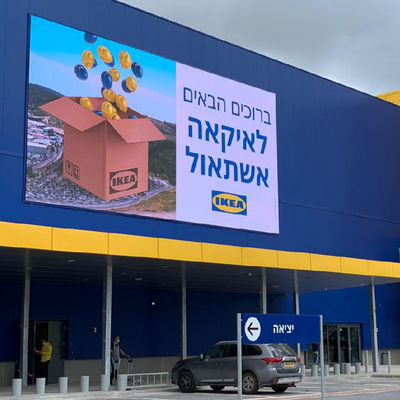

Widely used in outdoor advertising, government projects, building exterior walls, etc.
