P8 Outdoor LED Screen Module 320×360mm With Aluminum Structure
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P8 Outdoor LED video wall screen panel |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P8 Outdoor LED Video Wall Screen Panel | Size: | 320×360mm |
|---|---|---|---|
| Pixel Pitch: | H:8mm V:7.826mm | Resolution: | 40×46 |
| Features: | Common Cathode Circuit | Brightness: | 7500-8500cd/sqm |
| Lamp Type: | SMD2727 | Weight: | 1.95±0.05 |
| High Light: | P8 LED Screen Module,LED Screen Module 360mm,Aluminum Outdoor LED Module |
||
Product Description

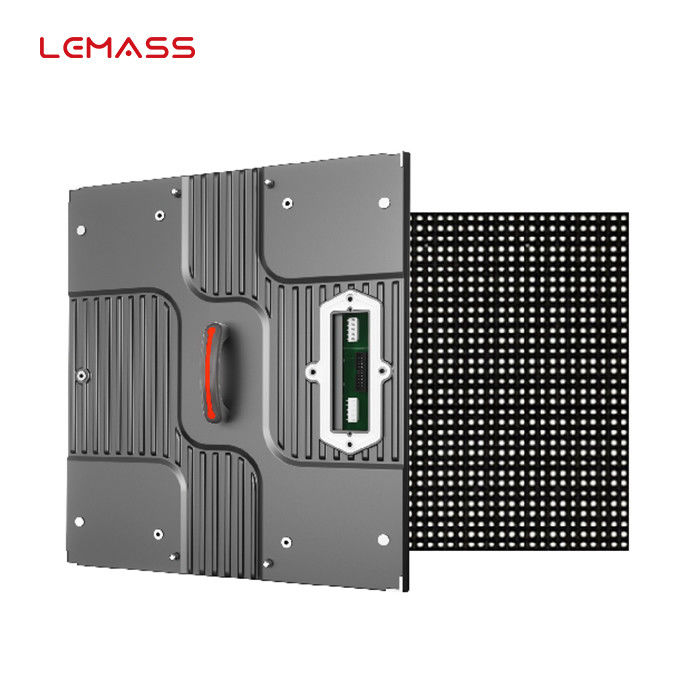

P8 Outdoor LED video wall screen panel 320*360mm MSE Plus Series light aluminum structure
Description:
Our outdoor LED screen has a much higher brightness than its indoor counterpart, in order to deliver bright and vibrant images even in direct sunlight, ideal for outdoor stadiums and events. Each of our outdoor LED screens is shipped in module format allowing you the flexibility to create screens of any size. Options are available for front or rear service access depending on your installation. Lemass outdoor LED screens are manufactured to strict quality standards, enduring a rigorous testing process before leaving our facility and coming complete with free spare parts and comprehensive warranty.
Quick Detail:
· Ultra-thin&light aluminum structure
· Low power consumption, efficient heat dissipation
· AI intelligent module
· Color gamut up to 130% DCI-P3
· Filter harmful blue light for eye protection
· Support 3D/HDR display
Specifications:
| Parameter Item | MSE8 Plus |
| Pixel Pitch (mm) | H:8 V:7.826 |
| Pixel Density (pixels/sqm) | 15,972 |
| Module Resolution | 40×46 |
| Mask | Standard |
| Lamp Type | SMD2727 |
| Module Size (mm) | 320×360×19 |
| Module Weight (kg) | 1.95±0.05 |
| Brightness (cd/sqm) | 7500/8500 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP65 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | ≥3840 |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤570, Ave:≤190 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

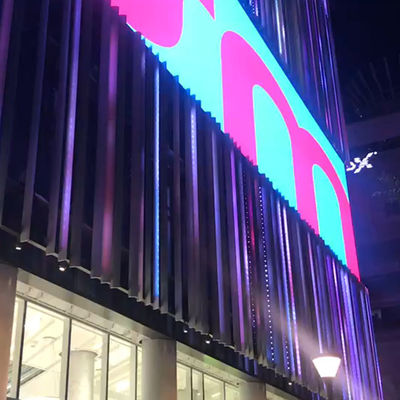

Widely used in shopping malls, exhibition halls, conference centers, etc.
