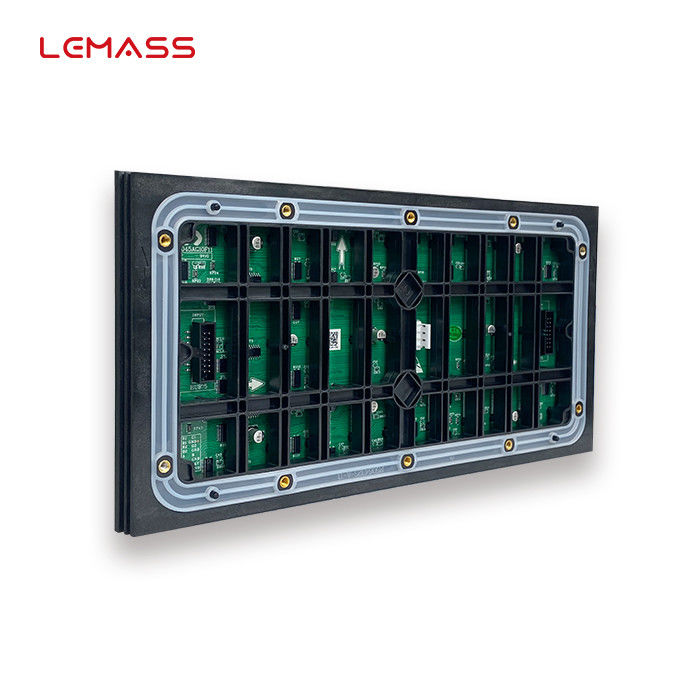

Waterproof P8 Outdoor LED Display Module 320x160mm For Wall Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P8(L) Outdoor LED wall screen module |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P8(L) Outdoor LED Wall Screen Module | Size: | 320x160mm |
|---|---|---|---|
| Pixel Pitch: | 8mm | Resolution: | 40×20 |
| Features: | Waterproof | Brightness: | 5500cd/sqm |
| Lamp Type: | SMD2727 | Weight: | 0.55±0.05kg |
| Highlight: | P8 Outdoor LED Display Module,Waterproof Outdoor LED Display Module,Wall Screen p8 outdoor led module |
||
Product Description
P8(L) Outdoor LED wall screen module 320x160mm MSG Series low temperature rise
Description:
Movement and special effects.
One of the many capabilities of digital media and not traditional billboards, is the use of special effects and movement in an advertisement. If you have a message that is particularly important, add some flashing letters or maybe some scrolling text. This is a great way to get your audience’s attention and make sure they see the full message.
Quick Detail:
· Waterproof IP66, Fire rating: UL94V-0
· 160° ultra-wide viewing angle
· Pixel by pixel correction
· Support 3D/HDR display
· High refresh and high quality drive IC
· Low temperature rise, excellent heat dissipation
Specifications:
| Parameter Item | MSG8S(L) |
| Pixel Pitch (mm) | 8 |
| Pixel Density (pixels/sqm) | 15,625 |
| Module Resolution | 40×20 |
| Mask | Standard |
| Lamp Type | SMD2727 |
| Module Size (mm) | 320x160x15 |
| Module Weight (kg) | 0.55±0.05 |
| Brightness (cd/sqm) | 5500 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | Front IP43, Rear IP65 |
| Intelligent Storage | NO |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤700,Ave:≤235 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10~+40 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range(Rh) | 10%80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

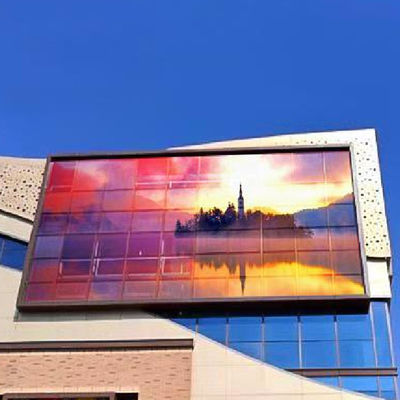

Widely used in outdoor advertising, government projects, building exterior walls, etc.
