SMD 2727 Outdoor LED Display Module P6 With Common Cathode Circuit
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P6 Outdoor LED screen wall module |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P6 Outdoor LED Screen Wall Module | Size: | 320×360mm |
|---|---|---|---|
| Pixel Pitch: | H:5.926mm V:6mm | Resolution: | 54×60 |
| Features: | Common Cathode Circuit | Brightness: | 7500-8500cd/sqm |
| Lamp Type: | SMD2727 | Weight: | 1.95±0.05 |
| High Light: | 2727 Outdoor LED Display Module,SMD Outdoor LED Display Module,Common Cathode p6 smd outdoor module |
||
Product Description

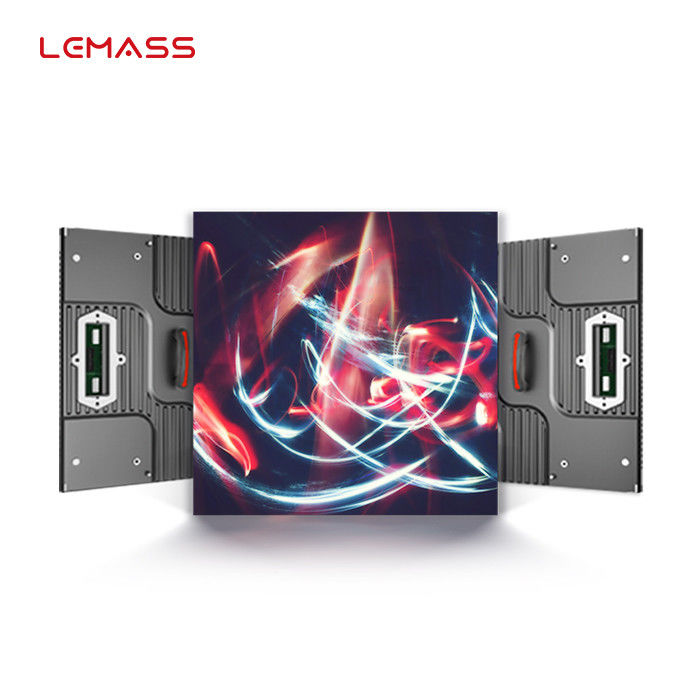

P6 Outdoor LED screen wall module 320*360mm MSE Plus Series 30% energy saving
Description:
MSE Plus Outdoor Series LED module (common cathode circuit, aluminum shell structure design) with IP66 waterproof and 30% energy saving, strong heat dissipation. MSE Plus has excellent weather resistance (can work in the environment of -20~50℃) equipped with AI intelligent chip and automatic readback of data, its brightness can reach ≥ 7500nits. Widely used in outdoor advertising, government projects, building exterior walls, etc.
Quick Detail:
· Ultra-thin & light aluminum structure
· Low power consumption, efficient heat dissipation
· AI intelligent module
· Color gamut up to 130% DCI-P3
· Filter harmful blue light for eye protection
· Support 3D/HDR display
Specifications:
| Parameter Item | MSE6 Plus |
| Pixel Pitch (mm) | H:5.926 V:6 |
| Pixel Density (pixels/sqm) | 28,125 |
| Module Resolution | 54×60 |
| Mask | Standard |
| Lamp Type | SMD2727 |
| Module Size (mm) | 320×360×19 |
| Module Weight (kg) | 1.95±0.05 |
| Brightness (cd/sqm) | 7500/8500 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP65 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | ≥3840 |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤570, Ave:≤190 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

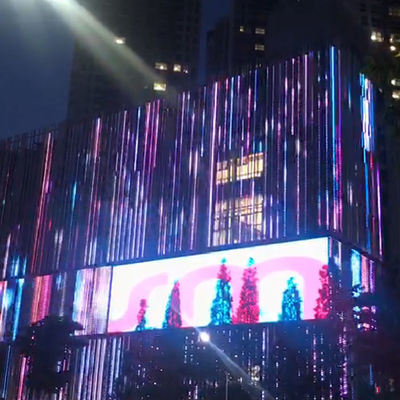

Widely used in shopping malls, exhibition halls, conference centers, etc.
