Commercial P1.5 Indoor LED Module With 160 Degree Viewing Angle
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.5 Indoor LED signs for business |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.5 Indoor LED Signs For Business | Size: | 320×160mm |
|---|---|---|---|
| Pixel Pitch: | 1.538mm | Resolution: | 208x104 |
| Features: | Pixel By Pixel Correction | Brightness: | 650cd/sqm |
| Lamp Type: | SMD1212 | Weight: | 0.47±0.05 |
| High Light: | P1.5 Indoor LED Module,160Degree Indoor LED Module,Commercial Indoor LED Module |
||
Product Description

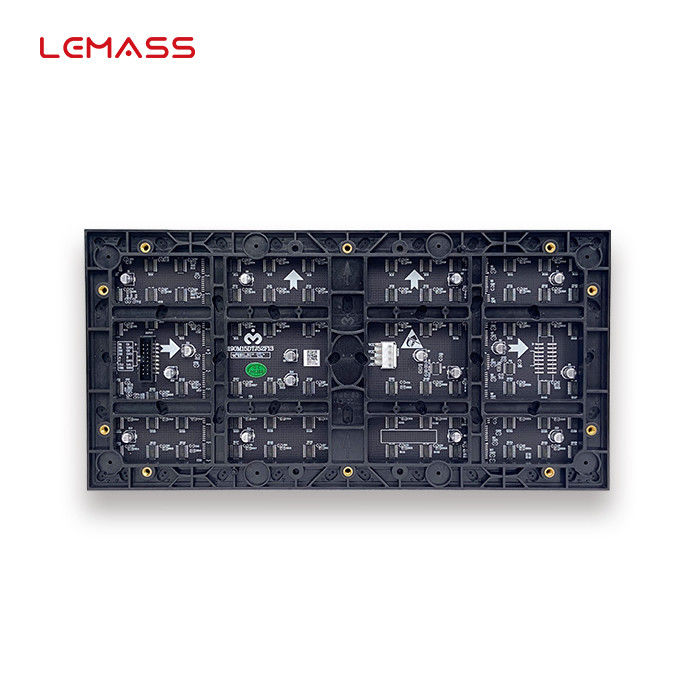

P1.5 Indoor LED signs for business 320*160mm MSG Series 160° ultra-wide viewing angle
Description:
Indoor LED signs are an effective way to get your message across to employees, customers and visitors to your establishment. These signs are easily customizable and can communicate the most timely content, whether it is a safety announcement, highlighting a special sale or sharing pertinent information. Indoor LED signs can improve customer service and help sell more products. LED signs are a modern way to communicate with your audience and makes a big difference to your marketing efforts. There is no other form of advertising is as flexible as an LED sign.
Quick Detail:
· Fire rating: UL94V-0
· 160° ultra-wide viewing angle
· Pixel by pixel correction
· ODM high quality led lamp
· High refresh and high quality drive IC
· Low temperature rise, excellent heat dissipation
Specifications:
| Parameter Item | MSG1.5 |
| Pixel Pitch (mm) | 1.538 |
| Pixel Density (pixels/sqm) | 422,500 |
| Module Resolution | 208x104 |
| Mask | Optional |
| Lamp Type | SMD1212 |
| Module Size (mm) | 320×160×14 |
| Module Weight (kg) | 0.47±0.05 |
| Brightness (cd/sqm) | 650 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | NO |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤370,Ave:≤125 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -25～+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

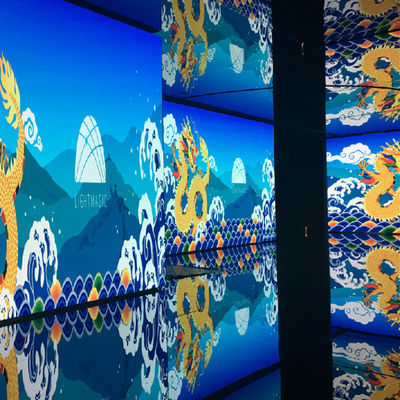

Widely used in shopping malls, exhibition halls, conference centers, etc.
