3 In 1 P10 SMD LED Module , LED Video Wall Module With 32×16 Resolution
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P10 High-quality SMD 3 in 1 LED display modules |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P10 High-quality SMD 3 In 1 LED Display Modules | Size: | 320x160mm |
|---|---|---|---|
| Pixel Pitch: | 10mm | Resolution: | 32×16 |
| Features: | Waterproof | Brightness: | 5500cd/sqm |
| Lamp Type: | SMD2727 | Weight: | 0.55±0.05kg |
| High Light: | P10 SMD LED Module,Video Wall P10 SMD LED Module,32×16 LED Video Wall Module |
||
Product Description

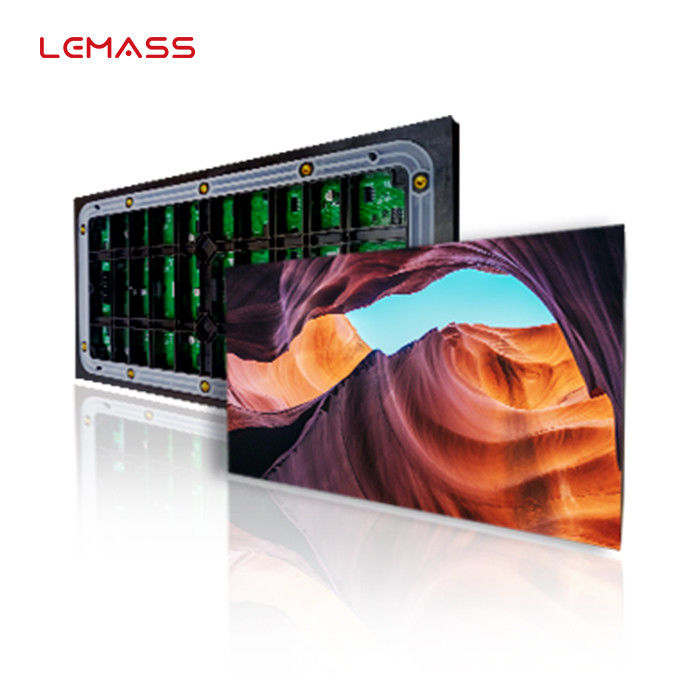

P10 High-quality SMD 3 in 1 LED display modules 320x160mm MSG Series excellent heat dissipation
Description:
Easy to change.
One of the disadvantages of traditional billboards is that any necessary advertisment changes have to be reprinted and reinstalled onto the billboard. Though it’s not generally difficult, it does take some time to uninstall one ad and put up another. With digital, a change can be made in a matter of seconds. Since it is just a program displaying the advertisement, the file would just need to be updated and the new ad would be in place.Digital advertising is a new and innovative way to show the world what your company can do. Society is moving forward and it is taking the advertisements with them.
Quick Detail:
· Waterproof IP66, Fire rating: UL94V-0
· 160° ultra-wide viewing angle
· Pixel by pixel correction
· Support 3D/HDR display
· High refresh and high quality drive IC
· Low temperature rise, excellent heat dissipation
Specifications:
| Parameter Item | MSG10S |
| Pixel Pitch (mm) | 10 |
| Pixel Density (pixels/sqm) | 10,000 |
| Module Resolution | 32×16 |
| Mask | Standard |
| Lamp Type | SMD2727 |
| Module Size (mm) | 320x160x15 |
| Module Weight (kg) | 0.55±0.05 |
| Brightness (cd/sqm) | 5500 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | Front IP43, Rear IP65 |
| Intelligent Storage | NO |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤740,Ave:≤248 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10~+40 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range(Rh) | 10%80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

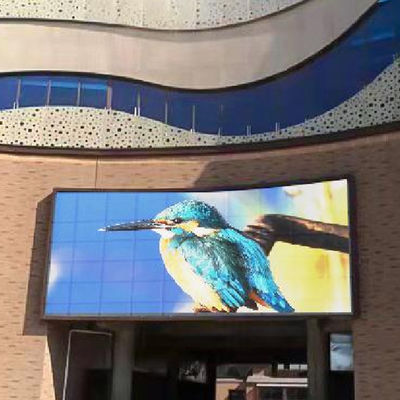

Widely used in outdoor advertising, government projects, building exterior walls, etc.
