P6 Outdoor LED Display Module Full Color 192×192mm Size Support 3D HDR Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P6 outdoor full color led display module |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P6 Outdoor Full Color Led Display Module | Size: | 192×192mm |
|---|---|---|---|
| Pixel Pitch: | 6mm | Resolution: | 32×32 |
| Features: | Waterproof | Brightness: | 5500cd/sqm |
| Lamp Type: | SMD2727 | Weight: | 0.55±0.05kg |
| High Light: | P6 Outdoor LED Display Module,192mm Outdoor LED Display Module,Outdoor p6 led display module |
||
Product Description

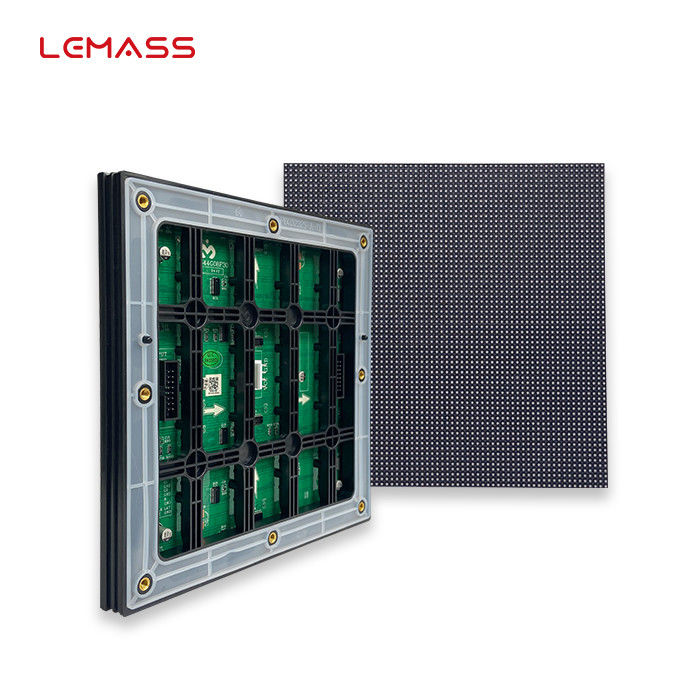

P6 outdoor full color led display module 192*192mm MSG Series support 3D/HDR display
Description:
Multiple advertisements for one company
Let’s say you have two events coming up and you would like to advertise both of them, but you only want them to appear in one location. With digital billboards, you can have two different ads appear back-to-back so you can promote both of the events and still hit the same market. If you only want to purchase one segment, but still want to display both ads, no problem! Digital advertising allows you to split up your time and display both advertisements in one segment.
Quick Detail:
· Waterproof IP66, Fire rating: UL94V-0
· 160° ultra-wide viewing angle
· Pixel by pixel correction
· Support 3D/HDR display
· High refresh and high quality drive IC
· Low temperature rise, excellent heat dissipation
Specifications:
| Parameter Item | MSG6S |
| Pixel Pitch (mm) | 6 |
| Pixel Density (pixels/sqm) | 27,778 |
| Module Resolution | 32×32 |
| Mask | Standard |
| Lamp Type | SMD2727 |
| Module Size (mm) | 192x192x14 |
| Module Weight (kg) | 0.55±0.05 |
| Brightness (cd/sqm) | 5500 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | Front IP43, Rear IP65 |
| Intelligent Storage | NO |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤710,Ave:≤238 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10~+40 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range(Rh) | 10%80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

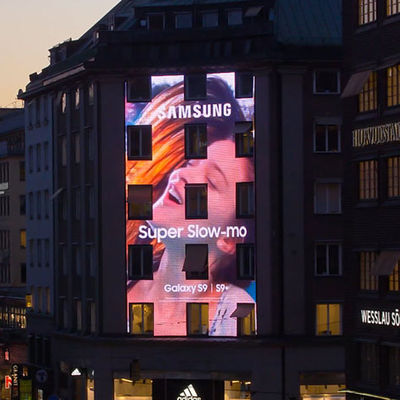

Widely used in outdoor advertising, government projects, building exterior walls, etc.
