IP66 Waterproof Outdoor LED Display Module P2.5 SMD 1415 Type
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P2.5 Outdoor LED Display Module |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P2.5 Outdoor LED Display Module | Size: | 320×160mm |
|---|---|---|---|
| Pixel Pitch: | 2.5mm | Resolution: | 128×64 |
| Features: | Waterproof | Brightness: | 4500cd/sqm |
| Lamp Type: | SMD1415 | Weight: | 0.55±0.05kg |
| High Light: | IP66 Outdoor LED Display Module,1415 Outdoor LED Display Module,Waterproof P2.5 LED Display Module |
||
Product Description

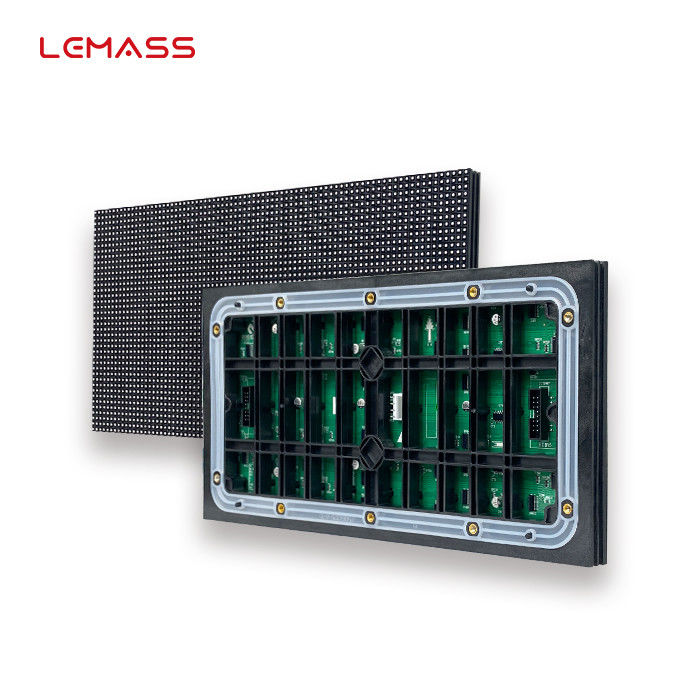

P2.5 Outdoor LED Display Module 320*160mm MSG Series Waterproof IP66
Description:
MSG Outdoor Series LED module (display ratio is 2:1) can be used in all mainstream LED screen control systems. Its production process, materials and assembly are carried out in accordance with strict standards. MSG series has the characteristics of flexibility, IP65, easy installation and maintenance. Widely used in outdoor advertising, government projects, building exterior walls, etc.
Quick Detail:
· Waterproof IP66, Fire rating: UL94V-0
· 160° ultra-wide viewing angle
· Pixel by pixel correction
· Support 3D/HDR display
· High refresh and high quality drive IC
· Low temperature rise, excellent heat dissipation
Specifications:
| Parameter Item | MSG2.5S |
| Pixel Pitch (mm) | 2.5 |
| Pixel Density (pixels/sqm) | 160,000 |
| Module Resolution | 128×64 |
| Mask | Standard |
| Lamp Type | SMD1415 |
| Module Size (mm) | 320x160x15 |
| Module Weight (kg) | 0.55±0.05 |
| Brightness (cd/sqm) | 4500 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | Front IP43, Rear IP65 |
| Intelligent Storage | NO |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤700,Ave:≤235 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10~+40 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range(Rh) | 10%80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

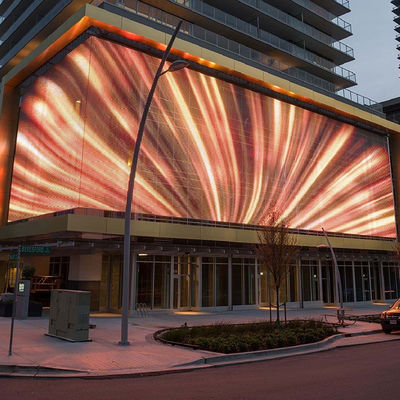

Widely used in outdoor advertising, government projects, building exterior walls, etc.
