Waterproof P8 LED Module , SMD LED Display Module For Outdoor Billboard
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P8 outdoor billboard LED module |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P8 Outdoor Billboard LED Module | Size: | 256x128mm |
|---|---|---|---|
| Pixel Pitch: | 8mm | Resolution: | 32×16 |
| Features: | Waterproof | Brightness: | 5500cd/sqm |
| Lamp Type: | SMD2727 | Weight: | 0.55±0.05kg |
| High Light: | Waterproof P8 LED Module,Outdoor P8 LED Module,Billboard SMD LED Display Module |
||
Product Description
P8 outdoor billboard LED module 256x128mm MSG Series high refresh and high quality drive IC
Description:
Difficult to ignore
When driving down the road, people are usually aware of their surroundings and, let’s face it, it’s pretty difficult to ignore bright lights that are constantly switching between ads. Digital advertising is a great way to make sure your ad is not only being seen, but also keeping the attention of your audience. The digital ads are usually located along the busiest streets and highways, so the amount of people seeing your ad will be much larger than if you were to go with a traditional billboard.
Quick Detail:
· Waterproof IP66, Fire rating: UL94V-0
· 160° ultra-wide viewing angle
· Pixel by pixel correction
· Support 3D/HDR display
· High refresh and high quality drive IC
· Low temperature rise, excellent heat dissipation
Specifications:
| Parameter Item | MSG8S |
| Pixel Pitch (mm) | 8 |
| Pixel Density (pixels/sqm) | 15,625 |
| Module Resolution | 32×16 |
| Mask | Standard |
| Lamp Type | SMD2727 |
| Module Size (mm) | 256x128x15 |
| Module Weight (kg) | 0.27±0.05 |
| Brightness (cd/sqm) | 5500 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | Front IP43, Rear IP65 |
| Intelligent Storage | NO |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤800,Ave:≤270 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10~+40 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range(Rh) | 10%80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

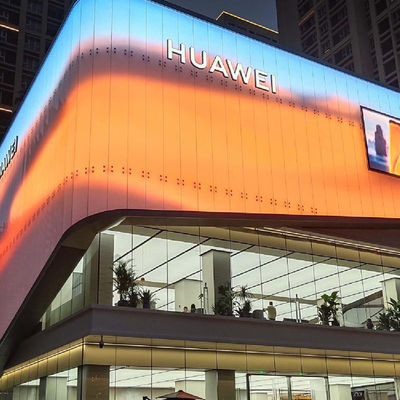

Widely used in outdoor advertising, government projects, building exterior walls, etc.
