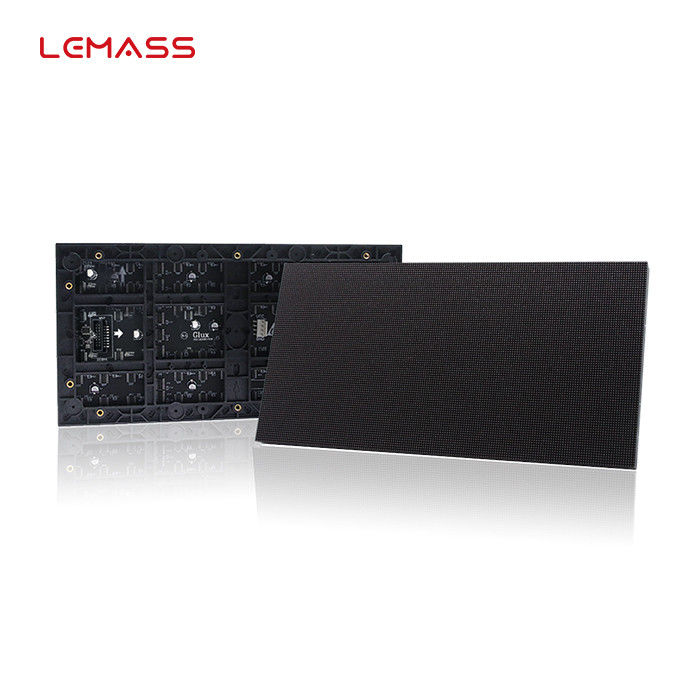

ODM SMD 2121 Module LED Full Color P3 Indoor With 320×160mm Size
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P3(L) full color led module indoor |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P3(L) Full Color Led Module Indoor | Size: | 320×160mm |
|---|---|---|---|
| Pixel Pitch: | 3.076mm | Resolution: | 104x52 |
| Features: | Pixel By Pixel Correction | Brightness: | 750cd/sqm |
| Lamp Type: | SMD2121 | Weight: | 0.47±0.05 |
| High Light: | ODM Module LED Full Color P3,SMD Module LED Full Color P3,2121 p3 indoor led module |
||
Product Description
P3(L) full color led module indoor 320*160mm MSG Series Low temperature rise
Description:
Indoor LED signs are an effective way to get your message across to employees, customers and visitors to your establishment. These signs are easily customizable and can communicate the most timely content, whether it is a safety announcement, highlighting a special sale or sharing pertinent information. Indoor LED signs can improve customer service and help sell more products. LED signs are a modern way to communicate with your audience and makes a big difference to your marketing efforts. There is no other form of advertising is as flexible as an LED sign.
Quick Detail:
· Fire rating: UL94V-0
· 160° ultra-wide viewing angle
· Pixel by pixel correction
· ODM high quality led lamp
· High refresh and high quality drive IC
· Low temperature rise, excellent heat dissipation
Specifications:
| Parameter Item | MSG3(L) |
| Pixel Pitch (mm) | 3.076 |
| Pixel Density (pixels/sqm) | 105,625 |
| Module Resolution | 104x52 |
| Mask | Optional |
| Lamp Type | SMD2121 |
| Module Size (mm) | 320×160×14 |
| Module Weight (kg) | 0.47±0.05 |
| Brightness (cd/sqm) | 750 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | NO |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤330,Ave:≤110 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -25～+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:

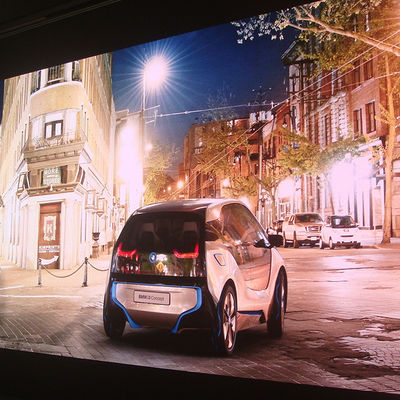

Applications:
Widely used in shopping malls, exhibition halls, conference centers, etc.
