IP31 Protection P2 LED Module SMD 1515 For Commercial Advertising
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P2.0 indoor led screen panel |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P2.0 Indoor Led Screen Panel | Size: | 320×160mm |
|---|---|---|---|
| Pixel Pitch: | 2mm | Resolution: | 160x80 |
| Features: | Pixel By Pixel Correction | Brightness: | 650cd/sqm |
| Lamp Type: | SMD1515 | Weight: | 0.47±0.05 |
| High Light: | IP31 P2 LED Module,Commercial P2 LED Module,1515 SMD LED Module |
||
Product Description

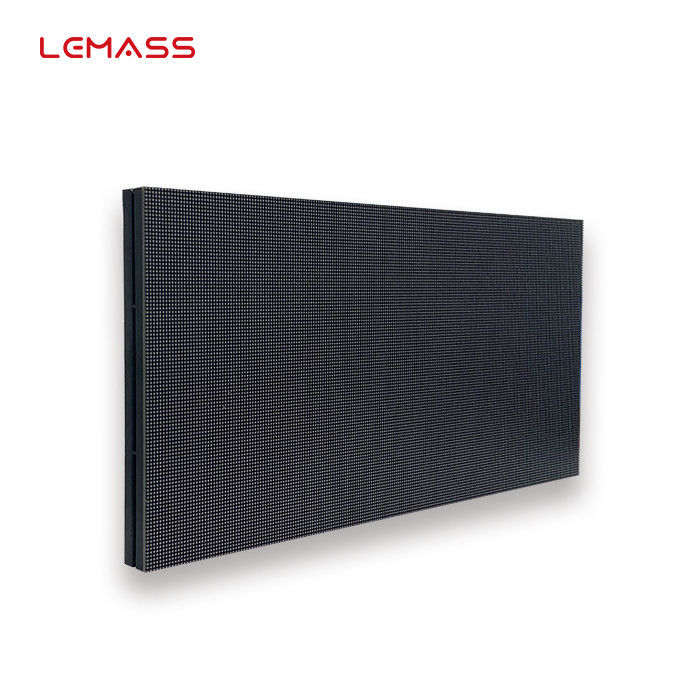

P2.0 indoor led screen panel 320*160mm MSG Series ODM high quality led lamp
Description:
LED Screens can be used for Commercial advertising, Stage & Exhibitions, Sports Events, Broadcasting Media, Movie Theater, Monitoring or Command Centres, Conference Halls & Hotels, Churches, Road Traffic. The latest trend in LED Screens is for the Shelf- Signage LED Screens used in Shopping centres or Malls. Please speak to us about this revolutionizing Technology which can change the marketing and advertising game for all the Marketing and Product developing Gurus.
Quick Detail:
· Fire rating: UL94V-0
· 160° ultra-wide viewing angle
· Pixel by pixel correction
· ODM high quality led lamp
· High refresh and high quality drive IC
· Low temperature rise, excellent heat dissipation
Specifications:
| Parameter Item | MSG2.0 |
| Pixel Pitch (mm) | 2 |
| Pixel Density (pixels/sqm) | 250,000 |
| Module Resolution | 160x80 |
| Mask | No |
| Lamp Type | SMD1515 |
| Module Size (mm) | 320×160×14 |
| Module Weight (kg) | 0.47±0.05 |
| Brightness (cd/sqm) | 650 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | NO |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤370,Ave:≤125 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -25～+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

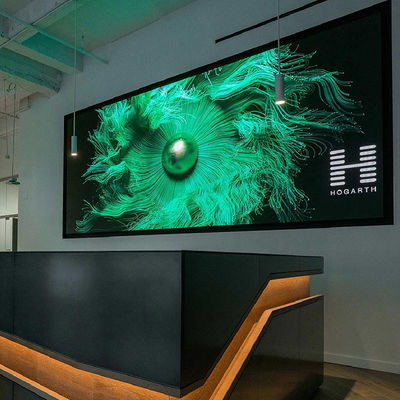

Widely used in shopping malls, exhibition halls, conference centers, etc.
