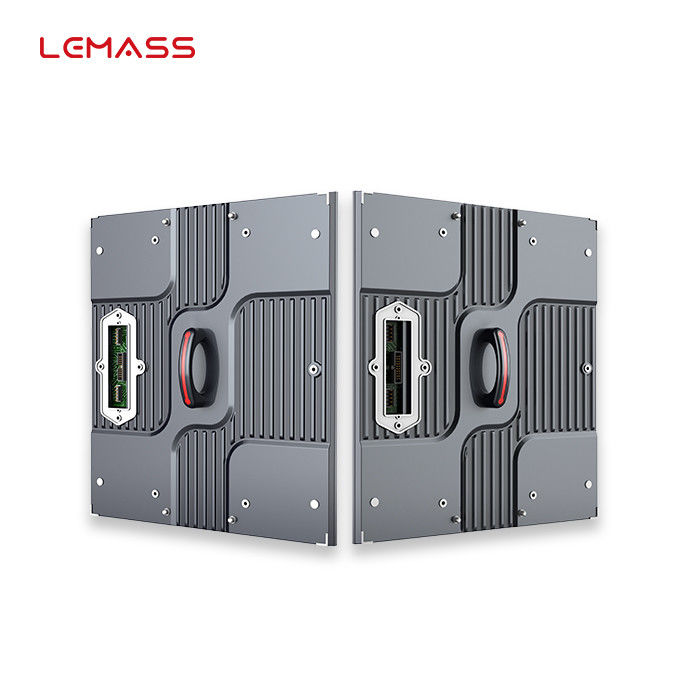

P10 Large Screen Outdoor LED Display Module 320×360mm 11000 Nits High Brightness
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P10 Outdoor large screen display module |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P10 Outdoor Large Screen Display Module | Size: | 320×360mm |
|---|---|---|---|
| Pixel Pitch: | 10mm | Resolution: | 32×36 |
| Features: | Common Cathode Circuit | Brightness: | 9000-11000cd/sqm |
| Lamp Type: | SMD2727 | Weight: | 1.95±0.05 |
| High Light: | P10 Outdoor LED Display Module,11000Nits Outdoor LED Display Module,High Brightness p10 led display module |
||
Product Description
P10 Outdoor large screen display module 320*360mm MSE Plus Series high brightness 11000nits
Description:
Our wide range of LED screens for outdoor advertising, help to catch audiences and passers-by you may not have reached with standard LCD displays. With their high brightness specification, these screens deliver a fantastic image, even in direct sunlight, serving as a great form of representation for your brand, product or service. Outdoor LED posters offer important information to passers-by when needed, guaranteed to be more memorable than conventional advertising displays.
Quick Detail:
· Ultra-thin&light aluminum structure
· Low power consumption, efficient heat dissipation
· AI intelligent module
· Color gamut up to 130% DCI-P3
· Filter harmful blue light for eye protection
· Support 3D/HDR display
Specifications:
| Parameter Item | MSE10 Plus |
| Pixel Pitch (mm) | 10 |
| Pixel Density (pixels/sqm) | 10,000 |
| Module Resolution | 32×36 |
| Mask | Standard |
| Lamp Type | SMD2727 |
| Module Size (mm) | 320×360×19 |
| Module Weight (kg) | 1.95±0.05 |
| Brightness (cd/sqm) | 9000/11000 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP65 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | ≥3840 |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤630, Ave:≤210 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

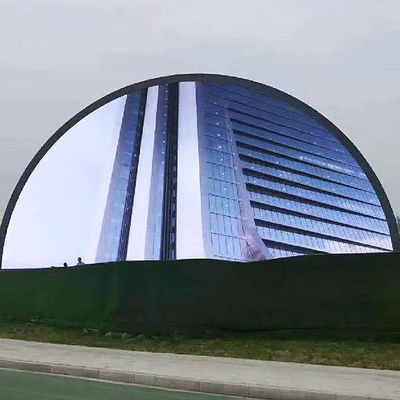

Widely used in shopping malls, exhibition halls, conference centers, etc.
