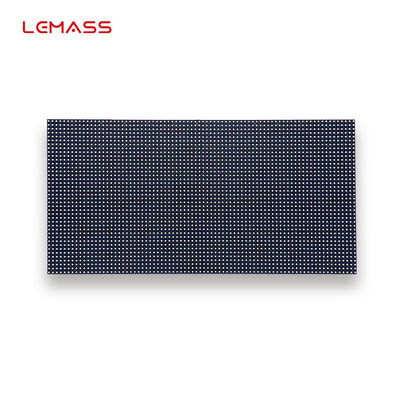

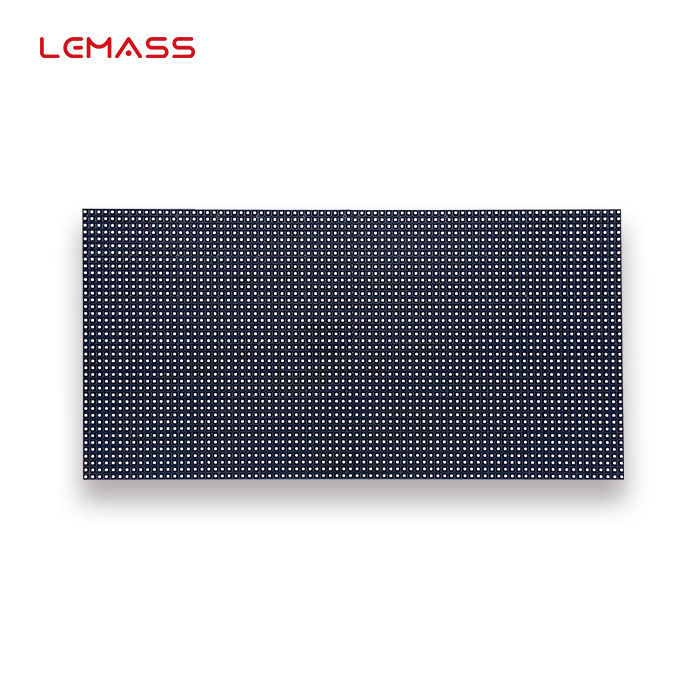

P4 Waterproof Outdoor LED Display Module With 160 Degree Ultra Wide Viewing Angle
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P4 Outdoor digital advertising screens module |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P4 Outdoor Digital Advertising Screens Module | Size: | 320×160mm |
|---|---|---|---|
| Pixel Pitch: | 4mm | Resolution: | 80×40 |
| Features: | Waterproof | Brightness: | 4500cd/sqm |
| Lamp Type: | SMD1921 | Weight: | 0.55±0.05kg |
| High Light: | P4 Outdoor LED Display Module,160 Degree Outdoor LED Display Module,Waterproof p4 led display module |
||
Product Description
P4 Outdoor digital advertising screens module 320*160mm MSG Series 160° ultra-wide viewing angle
Description:
Digital billboards are automatically illuminated.
A major concern some people have is that the lights will be too bright during the day and will negatively impact the visual appeal of the advertisement. Digital billboards are made with built in light sensors, causing the lights to dim during the day, and brighten at night ensuring your advertisement will be seen 24/7 by all who come across it.
Quick Detail:
· Waterproof IP66, Fire rating: UL94V-0
· 160° ultra-wide viewing angle
· Pixel by pixel correction
· Support 3D/HDR display
· High refresh and high quality drive IC
· Low temperature rise, excellent heat dissipation
Specifications:
| Parameter Item | MSG4S |
| Pixel Pitch (mm) | 4 |
| Pixel Density (pixels/sqm) | 62,500 |
| Module Resolution | 80×40 |
| Mask | Standard |
| Lamp Type | SMD1921 |
| Module Size (mm) | 320x160x15 |
| Module Weight (kg) | 0.55±0.05 |
| Brightness (cd/sqm) | 4500 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | Front IP43, Rear IP65 |
| Intelligent Storage | NO |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤700,Ave:≤235 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10~+40 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range(Rh) | 10%80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:
Widely used in outdoor advertising, government projects, building exterior walls, etc.
