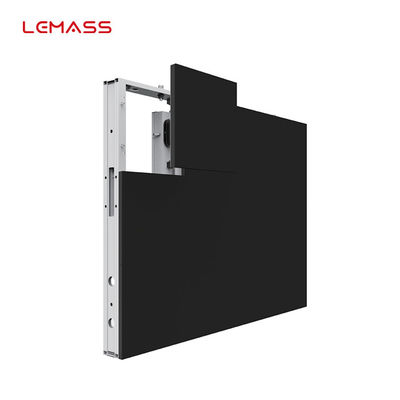

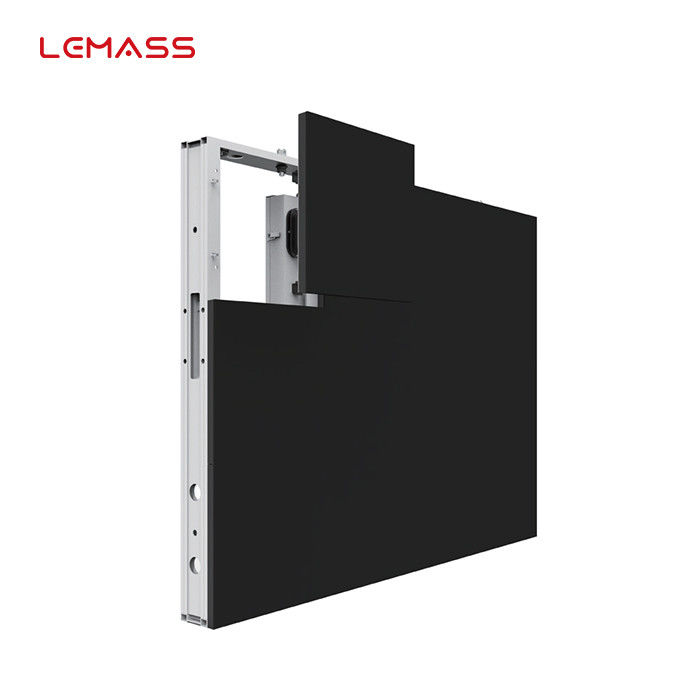

Fixed SMD P10 Full Color LED Display , Waterproof Outdoor LED Screen Panels
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P10 Newest High Quality full color outdoor led |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Cabinet packing (size: L543mm*W191mm*H696mm) |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P10 Newest High Quality Full Color Outdoor Led | Size: | 1280x960mm |
|---|---|---|---|
| Pixel Pitch: | 10mm | Resolution: | 128x96 |
| Features: | IP Level (Front / Rear) IP65 | Brightness: | 6000~8000cd/sqm |
| Cabinet Area: | 1.2288 ㎡ | Weight: | 36±0.1 |
| High Light: | SMD P10 Full Color LED Display,Fixed P10 Full Color LED Display,Waterproof Outdoor LED Screen Panels |
||
Product Description
P10 Newest High Quality full color outdoor led display panel LMS-NCV fixed SMD waterproof screen
Description:
If you are looking for a much bigger LED screen to cover a larger area such as a building, then our innovative LED curtain screens are what you need. Designed specifically for large outdoor fixed installations with advertising in mind, their slim depth cabinet is only 56mm thick and the LED strips can be installed either horizontally or vertically depending on the application. This is the perfect product where you need a high level of transparency with low weight, low power consumption and of course, low cost. The manufacture is of the highest standards, IP67 casings, military grade connectors, and the highest quality of LEDs, meaning that you get exceptional workmanship and build quality. Our LED Curtains are available in a range of different LED pixel pitch sizes, giving you a strong and versatile medium to convey promotional information at a very large scale with a viewing distance from 20 to 3000 metres!
Quick Detail:
· 3840Hz High Refresh Rate
· Wide Viewing Angle
· -30~50 ℃ Operating Temperature
· Front/Rear to Installation/Maintenance
· All new structural process design
· Various Pitches
Specifications:
| Parameter Item | NCV10S |
LED configuration | SMD |
Physical pixel pitch (mm) | 10 |
Module resolution (WxH) | 32x32 |
Module dimension (WxH, mm) | 320x320 |
Module composition (WxH) | 4x3 |
Cabinet resolution (WxH) | 128x96 |
Cabinet dimension (WxHxD, mm) | 1280x960x102* |
Cabinet area (㎡) | 1.2288 |
Weight (kg/cabinet；kg/㎡) | 36; 29 |
Pixel density (Point/㎡) | 10000 |

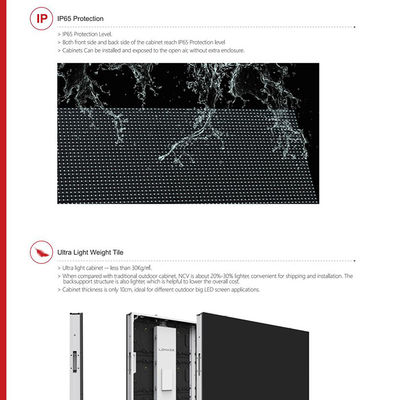

IP Level (Front / Rear) | IP65 |
Brightness (nits) | 6000~8000 |
Color temperature (K) | 3000—10000 |
Viewing angle (horiz ; vert) ° | 150; 110 |
Contrast ratio | 6000:1 |
Power consumption (max; avg)W/㎡ | 850; 280 |
Input voltage (V) | AC100~240V (50-60Hz) |
Maintenance | Front / Rear |
Refresh rate @60Hz | ≥3840 |
Frame rate Processing (Hz) | 50&60 |
Operating temperature (℃) | -30~50 |
Storage temperature (℃) | -40~60 |
Operating humidity (RH) | 10~90% |
Storage humidity (RH) | 10~80% |
Details about the product:
Applications:
