3840Hz Fixed LED Display Panel P6 , Outdoor LED Screen Panels For Advertising
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P6 Outdoor led screen diaply Fixed Exterior Video Wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Cabinet packing (size: L543mm*W191mm*H696mm) |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P6 Outdoor Led Screen Diaply Fixed Exterior Video Wall | Size: | 1280x960mm |
|---|---|---|---|
| Pixel Pitch: | 6.67mm | Resolution: | 192x144 |
| Features: | IP Level (Front / Rear) IP65 | Brightness: | 6000cd/sqm |
| Cabinet Area: | 1.2288 ㎡ | Weight: | 36±0.1 |
| High Light: | Fixed LED Display Panel P6,Advertising LED Display Panel P6,3840Hz Outdoor LED Screen Panels |
||
Product Description
P6 Outdoor led screen diaply Fixed Exterior Video Wall Display LMS-NCV Sign Board Signage Advertising LED
Description:
Outdoor Video Walls with high resolution images, animation and text are a highly powerful medium for advertising. For many years, we have seen LED video wall systems (also known as direct view LED displays) when out and about. Businesses use them to grab our attention and help them to sell their goods and services.
These types of LED video walls have come a long way over the past few years, and the LED screen walls of today are technologically far superior than they were even just a couple of years ago. Whether you want to stream full colour live images from a sporting event or live performances on stage at a festival, our LED outdoor video walls are the perfect solution.
A large outdoor LED display screen can be spectacular, especially at night, and when an outdoor display is implemented correctly, it can even end up becoming a landmark. For example, we installed a large outdoor LED display for Sunrise Radio in Leeds. The display sat at the very top of their building and incorporated an LED clock display, temperature display and a general information display.
Quick Detail:
· 3840Hz High Refresh Rate
· Wide Viewing Angle
· -30~50 ℃ Operating Temperature

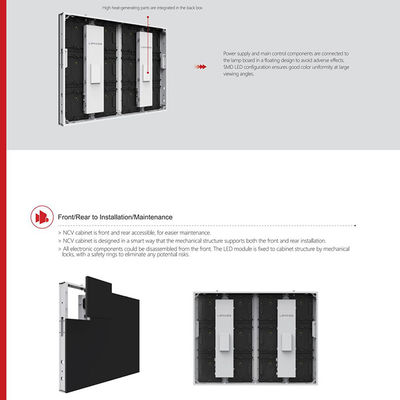

· Front/Rear to Installation/Maintenance
· All new structural process design
· Various Pitches
Specifications:
| Parameter Item | NCV06S |
LED configuration | SMD |
Physical pixel pitch (mm) | 6.67 |
Module resolution (WxH) | 48x48 |
Module dimension (WxH, mm) | 320x320 |
Module composition (WxH) | 4x3 |
Cabinet resolution (WxH) | 192x144 |
Cabinet dimension (WxHxD, mm) | 1280x960x102* |
Cabinet area (㎡) | 1.2288 |
Weight (kg/cabinet；kg/㎡) | 36; 29 |
Pixel density (Point/㎡) | 22500 |
IP Level (Front / Rear) | IP65 |
Brightness (nits) | 6000 |
Color temperature (K) | 3000—10000 |
Viewing angle (horiz ; vert) ° | 150; 110 |
Contrast ratio | 6000:1 |
Power consumption (max; avg)W/㎡ | 850; 280 |
Input voltage (V) | AC100~240V (50-60Hz) |
Maintenance | Front / Rear |
Refresh rate @60Hz | ≥3840 |
Frame rate Processing (Hz) | 50&60 |
Operating temperature (℃) | -30~50 |
Storage temperature (℃) | -40~60 |
Operating humidity (RH) | 10~90% |
Storage humidity (RH) | 10~80% |
Details about the product:
Applications:
