P6.6 SMD 2727 Outdoor 3d LED Display Screen Waterproof IP65
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P6.6 Outdoor 3d large led screen |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case + Cabinet packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P6.6 Outdoor 3d Large Led Screen | Size: | 960×960mm |
|---|---|---|---|
| Pixel Pitch: | 6.667mm | Resolution: | 144×144 |
| Features: | IP65 Waterproof / Front And Rear Maintenance | Brightness: | >6500cd/sqm |
| Lamp Type: | SMD2727 | Weight: | 28±0.05kg |
| High Light: | 2727 Outdoor 3d LED Display,P6.6 Outdoor 3d LED Display,IP65 3d LED Display Screen |
||
Product Description

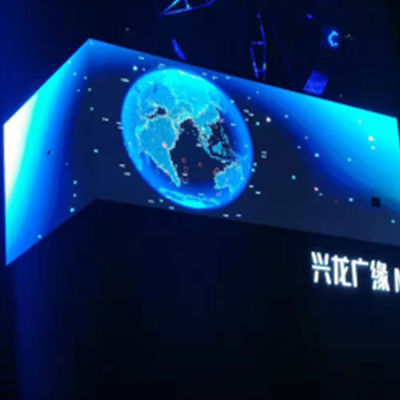

P6.6 Outdoor 3d large led screen LMS-GE waterproof IP65 efficient heat dissipation
Description:
From stadium scoreboards and concert venue backdrops to storefront advertising and transportation signage, there are more opportunities than ever to deliver impactful visual experiences when people are outside. Lemass outdoor LED display solutions are designed to be just what you need, where you need it.
Quick Detail:
· Waterproof IP65 level
· Efficient heat dissipation

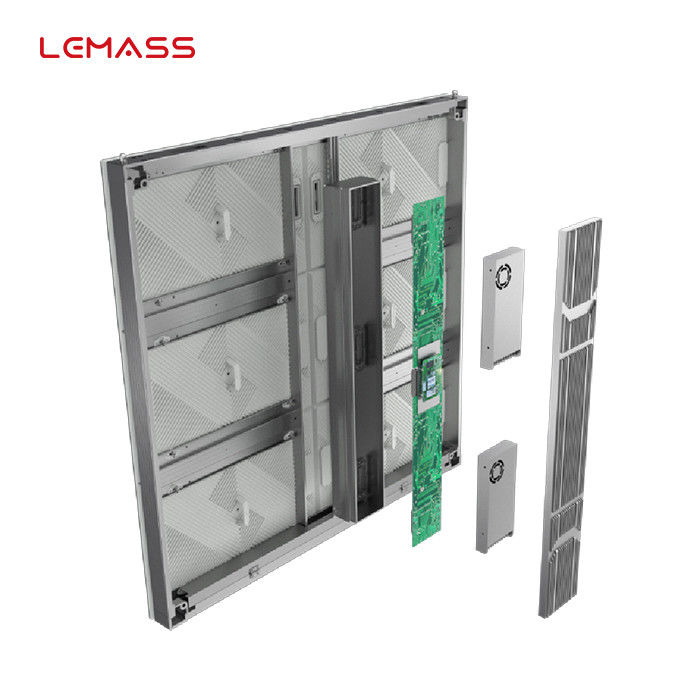

· Front and rear maintenance
· Flexible splicing structure
· Ultra high brightness
· Fire rating: 94-5VB
Specifications:
| Parameter Item | LMS-GE6.6S |
| Pixel Pitch (mm) | 6.667 |
| Pixel Density (pixels/sqm) | 22,500 |
| Module Resolution | 72×48 |
| Cabinet Resolution | 144×144 |
| Mask | Standard |
| Lamp Type | SMD2727 |
| Cabinet Size (mm) | 960×960×77 |
| Square Weight (kg) | 28 |
| Brightness (cd/sqm) | >6500 |
| Gray Scale (Bit) | 14 |
| Color Temp (k) | 3000~10000 |
| Control System | Synchronous Control |
| Protection Level | IP65 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate(Hz) | ≥3840 |
| Working Voltage | AC100~240 50/60HZ |
| Power Consumption (W/ m²) | Max:≤800,Ave:≤320 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -20～+50 |
| Storage Temp (℃) | -30～+60 |
| Humidity Range(Rh) | 10%~95%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Remark: Above data is subject to change without previous notice
Details about the product:
Applications:
LMS-GE is widely used in outdoor advertising screens, building exterior walls, shopping malls, etc.
