Commercial Outdoor Fixed LED Display P10 Waterproof IP65 Flexible Splicing Structure
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P10 outdoor commercial led screen |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case + Cabinet packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P10 Outdoor Commercial Led Screen | Size: | 960×960mm |
|---|---|---|---|
| Pixel Pitch: | 10mm | Resolution: | 96×96 |
| Features: | IP65 Waterproof / Front And Rear Maintenance | Brightness: | >6500cd/sqm |
| Lamp Type: | SMD2727 | Weight: | 28±0.05kg |
| High Light: | Outdoor Fixed LED Display P10,Outdoor Fixed LED Display IP65,Waterproof p10 outdoor led display |
||
Product Description
P10 outdoor commercial led screen LMS-GE waterproof IP65 flexible splicing structure and size
Description:
Bright in the Light: It can be challenging to see digital signage when the sun is shining on it. Planar's outdoor LED displays are high brightness with models delivering as much as 6,000 nits, making them easy for the audience to see even in direct sunlight.
Quick Detail:
· Waterproof IP65 level
· Efficient heat dissipation
· Front and rear maintenance

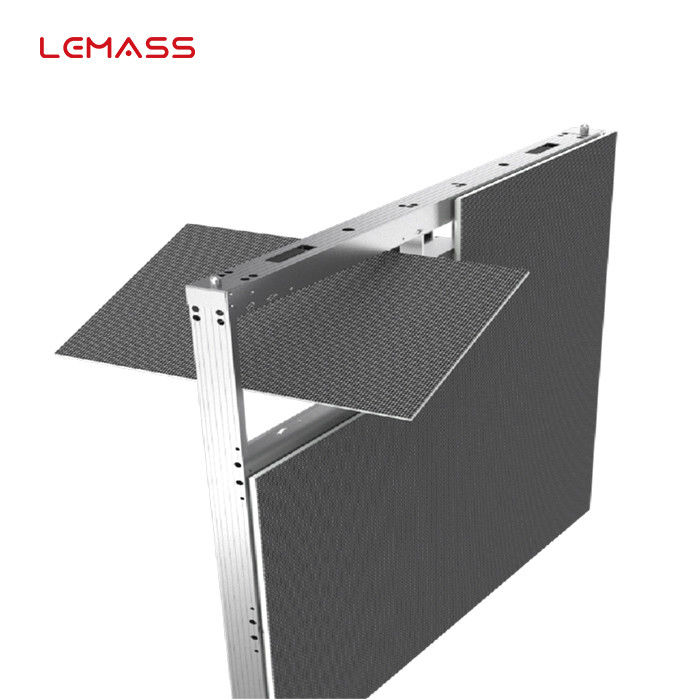

· Flexible splicing structure
· Ultra high brightness
· Fire rating: 94-5VB
Specifications:
| Parameter Item | LMS-GE10S |
| Pixel Pitch (mm) | 10 |
| Pixel Density (pixels/sqm) | 10,000 |
| Module Resolution | 48×32 |
| Cabinet Resolution | 96×96 |
| Mask | Standard |
| Lamp Type | SMD2727 |
| Cabinet Size (mm) | 960×960×77 |
| Square Weight (kg) | 28 |
| Brightness (cd/sqm) | >6500 |
| Gray Scale (Bit) | 14 |
| Color Temp (k) | 3000~10000 |
| Control System | Synchronous Control |
| Protection Level | IP65 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate(Hz) | ≥3840 |
| Working Voltage | AC100~240 50/60HZ |
| Power Consumption (W/ m²) | Max:≤800,Ave:≤320 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -20～+50 |
| Storage Temp (℃) | -30～+60 |
| Humidity Range(Rh) | 10%~95%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Remark: Above data is subject to change without previous notice
Details about the product:
Applications:

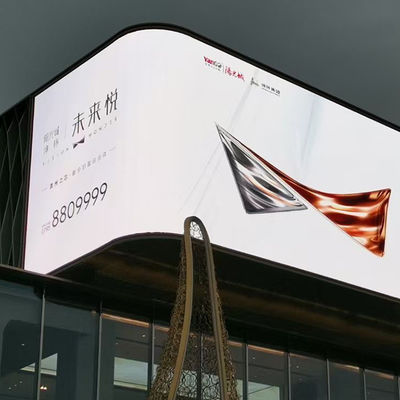

LMS-GE is widely used in outdoor advertising screens, building exterior walls, shopping malls, etc.
