SMD 2727 Outdoor Fixed LED Display P5.7 Waterproof IP65 960×960mm Size
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P5.7 Outdoor Fixed LED Display 1:1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Wooden case + Cabinet packing |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P5.7 Outdoor Fixed LED Display 1:1 | Size: | 960×960mm |
|---|---|---|---|
| Pixel Pitch: | 5.7mm | Resolution: | 168×168 |
| Features: | IP65 Waterproof / Front And Rear Maintenance | Brightness: | >6500cd/sqm |
| Lamp Type: | SMD2727 | Weight: | 28±0.05kg |
| High Light: | 2727 Outdoor Fixed LED Display,SMD Outdoor Fixed LED Display,P5.7 Outdoor Fixed LED Display |
||
Product Description

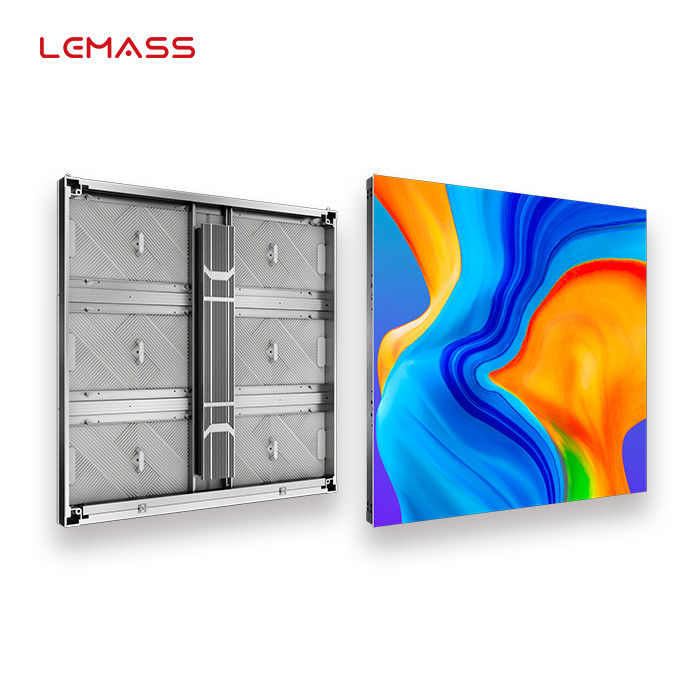

P5.7 Outdoor Fixed LED Display 1:1 LMS-GE Waterproof IP65 Front And Rear Maintenance
Description:
LMS-GE Series outdoor cabinet (ratio 1:1, waterproof IP66, aluminum bottom shell) can achieve 30% energy saving, efficient heat dissipation, excellent weather resistance (work normally in the environment of -20~50℃), LMS-GE is widely used in outdoor advertising screens, building exterior walls, shopping malls, etc.
Quick Detail:
· Waterproof IP65 level
· Efficient heat dissipation
· Front and rear maintenance
· Flexible splicing structure
· Ultra high brightness
· Fire rating: 94-5VB
Specifications:
| Parameter Item | LMS-GE5.7S |
| Pixel Pitch (mm) | 5.7 |
| Pixel Density (pixels/sqm) | 30,625 |
| Module Resolution | 84×56 |
| Cabinet Resolution | 168×168 |
| Mask | Standard |
| Lamp Type | SMD2727 |
| Cabinet Size (mm) | 960×960×77 |
| Square Weight (kg) | 28 |
| Brightness (cd/sqm) | >6500 |
| Gray Scale (Bit) | 14 |
| Color Temp (k) | 3000~10000 |
| Control System | Synchronous Control |
| Protection Level | IP65 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate(Hz) | ≥3840 |
| Working Voltage | AC100~240 50/60HZ |
| Power Consumption (W/ m²) | Max:≤800,Ave:≤320 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -20～+50 |
| Storage Temp (℃) | -30～+60 |
| Humidity Range(Rh) | 10%~95%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

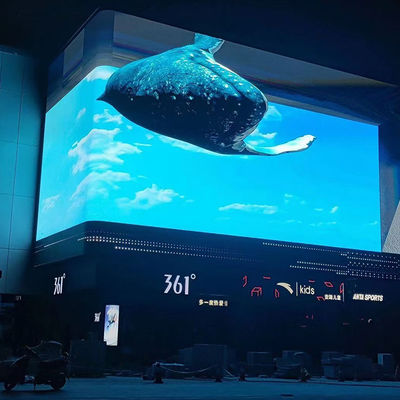

LMS-GE is widely used in outdoor advertising screens, building exterior walls, shopping malls, etc.
