Multi Color P4 Outdoor LED Screen Display Waterproof IP65 1280x960mm Size
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P4 Multi Color Big Outdoor Led Display Screens |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Cabinet packing (size: L543mm*W191mm*H696mm) |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P4 Multi Color Big Outdoor Led Display Screens | Size: | 1280x960mm |
|---|---|---|---|
| Pixel Pitch: | 4.0mm | Resolution: | 320x240 |
| Features: | IP Level (Front / Rear) IP65 | Brightness: | 5500cd/sqm |
| Cabinet Area: | 1.2288 ㎡ | Weight: | 36±0.1 |
| High Light: | Multi Color P4 Outdoor LED Screen,P4 Outdoor LED Screen IP65,960mm p4 outdoor led display |
||
Product Description
P4 Multi Color Big Outdoor Led Display Screens LMS-NCV Waterproof IP65 Billboard
Description:
The visual impact of an indoor full colour video wall is determined by a variety of different factors, including pixel pitch, display area, colour uniformity, grey levels, refresh rate, module and cabinet manufacture, and LED degradation. This can make choosing the right product and supplier a daunting task. At Lemass we will help you to make an informed decision to select the correct solution for your needs. Not just for today, but throughout the lifespan of the direct view LED display, we will be on hand with the advice and help you need. With our extensive experience in the LED industry, spanning more than 40 years, we have focused heavily on R&D, analysing image quality, pixel configuration, and contrast ratio as well as brightness levels, viewing angles, and a higher contrast. LED pixel pitches for the high-definition screens are 1.667mm, 1.84mm, 2mm, 2.5mm, 3.076mm and 4mm. The cabinets are 640 x 480mm giving you different options of configuration.

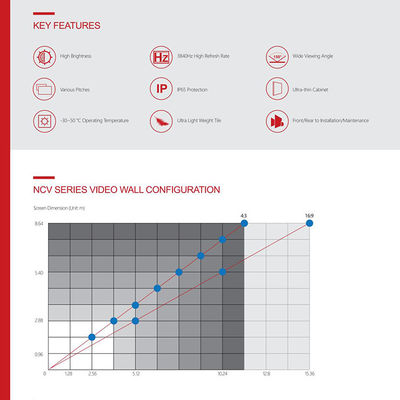

Quick Detail:
· 3840Hz High Refresh Rate
· Wide Viewing Angle
· -30~50 ℃ Operating Temperature
· Front/Rear to Installation/Maintenance
· All new structural process design
· Various Pitches
Specifications:
| Parameter Item | NCV04S |
LED configuration | SMD |
Physical pixel pitch (mm) | 4 |
Module resolution (WxH) | 80x80 |
Module dimension (WxH, mm) | 320x320 |
Module composition (WxH) | 4x3 |
Cabinet resolution (WxH) | 320x240 |
Cabinet dimension (WxHxD, mm) | 1280x960x102* |
Cabinet area (㎡) | 1.2288 |
Weight (kg/cabinet；kg/㎡) | 36; 29 |
Pixel density (Point/㎡) | 62500 |
IP Level (Front / Rear) | IP65 |
Brightness (nits) | 5500 |
Color temperature (K) | 3000—10000 |
Viewing angle (horiz ; vert) ° | 150; 110 |
Contrast ratio | 6000:1 |
Power consumption (max; avg)W/㎡ | 850; 280 |
Input voltage (V) | AC100~240V (50-60Hz) |
Maintenance | Front / Rear |
Refresh rate @60Hz | ≥3840 |
Frame rate Processing (Hz) | 50&60 |
Operating temperature (℃) | -30~50 |
Storage temperature (℃) | -40~60 |
Operating humidity (RH) | 10~90% |
Storage humidity (RH) | 10~80% |
Details about the product:
Applications:
