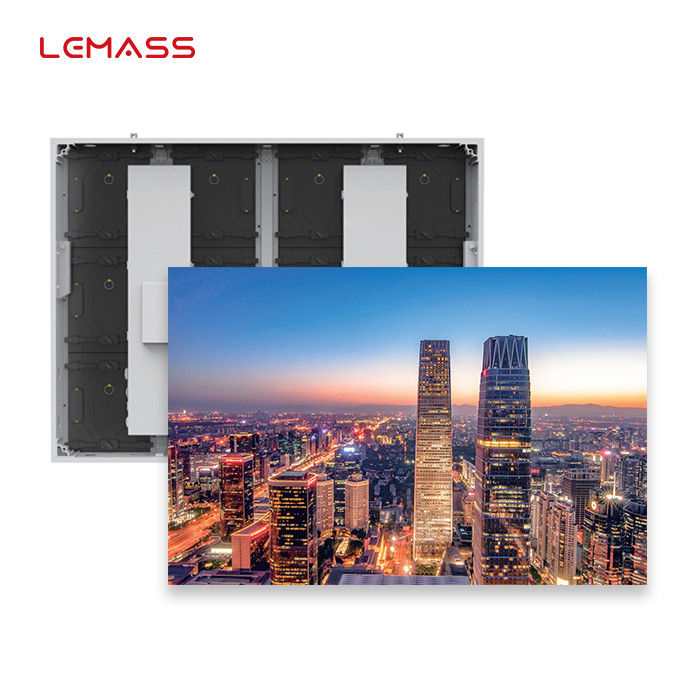

P5 90 Degree Outdoor Fixed LED Display Full Color LMS-NCV 6000cd/Sqm High Brightness
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P5 90 Degree Outdoor Full Color LED Display |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Cabinet packing (size: L543mm*W191mm*H696mm) |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P5 90 Degree Outdoor Full Color LED Display | Size: | 1280x960mm |
|---|---|---|---|
| Pixel Pitch: | 5.0mm | Resolution: | 256x192 |
| Features: | IP Level (Front / Rear) IP65 | Brightness: | 6000cd/sqm |
| Cabinet Area: | 1.2288 ㎡ | Weight: | 36±0.1 |
| High Light: | 90Degree Outdoor Fixed LED Display,P5 Outdoor Fixed LED Display,Full Color p5 led display |
||
Product Description
P5 90 Degree Outdoor Full Color LED Display Corner LMS-NCV High Brightness
Description:
Using black SMD LEDs means that the quality is further enhanced whilst individual rubberised shaders over each LED means that the contrast levels are improved offering wide viewing angles both horizontally and vertically. Colour purity and colour uniformity across the screen is of paramount importance, as is using SMD LEDs to construct the screens from the same batch, to further ensure colour uniformity. The modules are constructed to a very high specification and the highest quality of EMC tested LEDs are used to ensure that each of our indoor wall displays is of the very highest standard. The modules also undergo an extremely rigorous testing regime to make sure that the equipment that we sell you is both reliable and efficient. The indoor video screen modules are available with front service access. The modules have been fully bench tested, vibration tested, and dark room tested to ensure the high quality of the wall of screens. Our manufacturing criteria exceeds industry standards so that we can supply the very best quality wall of LEDS to you.
Quick Detail:
· 3840Hz High Refresh Rate
· Wide Viewing Angle
· -30~50 ℃ Operating Temperature
· Front/Rear to Installation/Maintenance
· All new structural process design

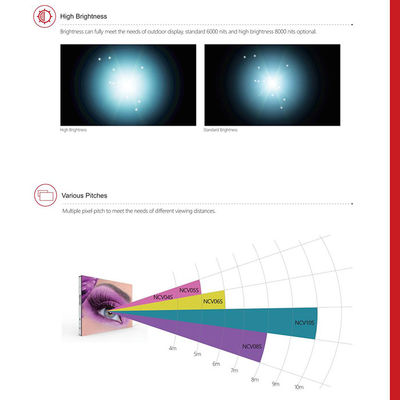

· Various Pitches
Specifications:
| Parameter Item | NCV05S |
LED configuration | SMD |
Physical pixel pitch (mm) | 5 |
Module resolution (WxH) | 64x64 |
Module dimension (WxH, mm) | 320x320 |
Module composition (WxH) | 4x3 |
Cabinet resolution (WxH) | 256x192 |
Cabinet dimension (WxHxD, mm) | 1280x960x102* |
Cabinet area (㎡) | 1.2288 |
Weight (kg/cabinet；kg/㎡) | 36; 29 |
Pixel density (Point/㎡) | 40000 |
IP Level (Front / Rear) | IP65 |
Brightness (nits) | 6000 |
Color temperature (K) | 3000—10000 |
Viewing angle (horiz ; vert) ° | 150; 110 |
Contrast ratio | 6000:1 |
Power consumption (max; avg)W/㎡ | 850; 280 |
Input voltage (V) | AC100~240V (50-60Hz) |
Maintenance | Front / Rear |
Refresh rate @60Hz | ≥3840 |
Frame rate Processing (Hz) | 50&60 |
Operating temperature (℃) | -30~50 |
Storage temperature (℃) | -40~60 |
Operating humidity (RH) | 10~90% |
Storage humidity (RH) | 10~80% |
Details about the product:
