Digital P8 Outdoor Fixed LED Display Programmable For Advertising
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P8 outdoor LED screen advertising fixed digital board |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Cabinet packing (size: L543mm*W191mm*H696mm) |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P8 Outdoor LED Screen Advertising Fixed Digital Board | Size: | 1280x960mm |
|---|---|---|---|
| Pixel Pitch: | 8.0mm | Resolution: | 160x120 |
| Features: | IP Level (Front / Rear) IP65 | Brightness: | 8000cd/sqm |
| Cabinet Area: | 1.2288 ㎡ | Weight: | 36±0.1 |
| High Light: | P8 Outdoor Fixed LED Display,Outdoor Fixed LED Display Programmable,Digital p8 led display |
||
Product Description

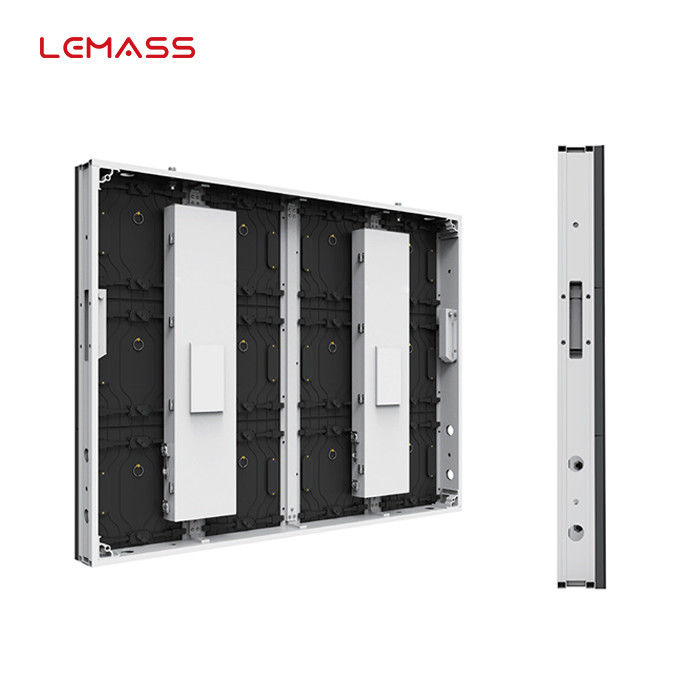

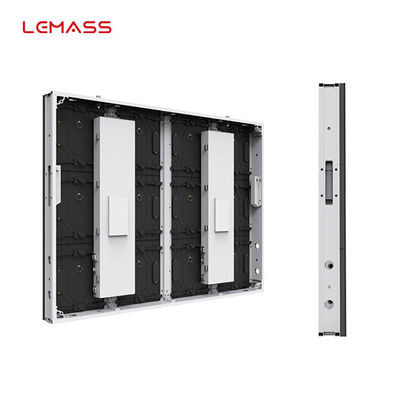

P8 outdoor LED screen advertising fixed digital board LMS-NCV programmable led display
Description:
High brightness levels in excess of 7500 ensure exceptional picture quality in direct sunlight and our 16-bit LED drivers display a wider spectrum at all light levels of brightness, to give a greater variety of colour and uniformly smooth viewing experience. The LEDs themselves are or course the most important component used in the manufacture of our LED displays and account for approximately 60% of the total cost. To ensure the uniformity of the LEDs, we use same BIN LEDs for our display, guaranteeing the same high quality of brightness and colour, negating any need for calibration of the screen. Calibration is only necessary when an LED screen manufacturer uses different BIN LEDs and calibration then dims all of the LEDs to the dimmest LED, which obviously leaves you with a substandard screen. We always ensure that our screens have the highest quality of LEDs from the same batch.
Quick Detail:

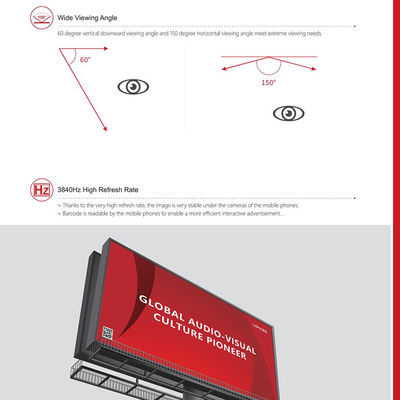

· 3840Hz High Refresh Rate
· Wide Viewing Angle
· -30~50 ℃ Operating Temperature
· Front/Rear to Installation/Maintenance
· All new structural process design
· Various Pitches
Specifications:
| Parameter Item | NCV08S |
LED configuration | SMD |
Physical pixel pitch (mm) | 8 |
Module resolution (WxH) | 40x40 |
Module dimension (WxH, mm) | 320x320 |
Module composition (WxH) | 4x3 |
Cabinet resolution (WxH) | 160x120 |
Cabinet dimension (WxHxD, mm) | 1280x960x102* |
Cabinet area (㎡) | 1.2288 |
Weight (kg/cabinet；kg/㎡) | 36; 29 |
Pixel density (Point/㎡) | 15625 |
IP Level (Front / Rear) | IP65 |
Brightness (nits) | 6000~8000 |
Color temperature (K) | 3000—10000 |
Viewing angle (horiz ; vert) ° | 150; 110 |
Contrast ratio | 6000:1 |
Power consumption (max; avg)W/㎡ | 850; 280 |
Input voltage (V) | AC100~240V (50-60Hz) |
Maintenance | Front / Rear |
Refresh rate @60Hz | ≥3840 |
Frame rate Processing (Hz) | 50&60 |
Operating temperature (℃) | -30~50 |
Storage temperature (℃) | -40~60 |
Operating humidity (RH) | 10~90% |
Storage humidity (RH) | 10~80% |
Details about the product:
Applications:
