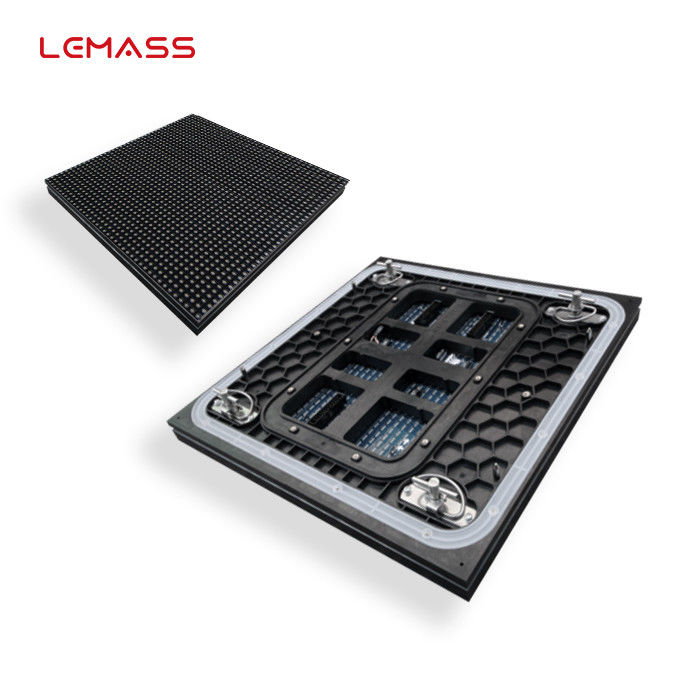

P10 Outdoor LED Screen Display Panel 320×320mm With DIP 3 In1 Process ODM
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P10 ratio 1:1 outdoor LED display panel |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P10 Ratio 1:1 Outdoor LED Display Panel | Size: | 320x320mm |
|---|---|---|---|
| Pixel Pitch: | 10mm | Resolution: | 32x32 |
| Features: | DIP 3in1 Process | Brightness: | ≥8000cd/sqm |
| Lamp Type: | DIP570 | Weight: | 2±0.05 |
| High Light: | LED Screen Display Panel P10,LED Screen Display Panel 320mm,ODM P10 Outdoor LED Display |
||
Product Description
P10 ratio 1:1 outdoor LED display panel 320*320mm LMS-K Series high brightness
Description:
All of our LED solutions come in a modular format giving you total freedom with the size and configuration of the screen and endless potential to create even a giant led screen, built with the environment and application in mind. The modular nature of these displays make maintenance and repairs easy, with our solutions coming complete with control system and control software. Lemass offers LED screens that serve as a solution to a variety of applications, with a comprehensive range of both outdoor and indoor display solutions also available.
Quick Detail:
· DIP 3in1 production process
· Ultra low power consumption
· Ultra high brightness
· Front and rear maintenance
· Support 3D/HDR display
· High refresh and high quality drive IC
Specifications:
| Parameter Item | LMS-K10A1 |
| Pixel Pitch (mm) | 10 |
| Pixel Density (pixels/sqm) | 10,000 |
| Module Resolution | 32x32 |
| Mask | Standard |
| Lamp Type | DIP570 |
| Module Size (mm) | 320x320x30 |
| Module Weight (kg) | 2±0.05 |
| Brightness (cd/sqm) | ≥8000 |
| Gray Scale (Bit) | 14 |
| Color Temp (k) | 3000~15000 |
| Control System | Synchronous Control |
| Protection Level | Front IP65, Rear IP54 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate(Hz) | 1920/3840 (Optional) |
| Working Voltage | AC:100V~240V±10% |
| Power Consumption (W/ m²) | Max:≤420,Ave:≤100 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -20~+45 |
| Storage Temp (℃) | -40~+60 |
| Humidity Range(Rh) | 10%~90%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

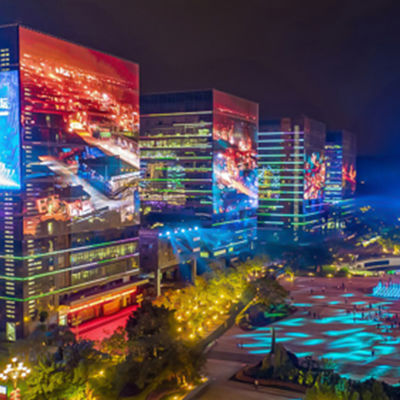

Widely used in shopping malls, exhibition halls, conference centers, etc.
