Indoor P1.2 LED Screen Display Panel 3840Hz With 160 Degree Viewing Angle
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.2 indoor LED wall video screen cabinet |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Cabinet packing (size: L543mm*W191mm*H696mm) |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.2 Indoor LED Wall Video Screen Cabinet | Size: | 640×640mm |
|---|---|---|---|
| Pixel Pitch: | 1.2mm | Resolution: | 512x512 |
| Features: | High Refresh Rate 3840Hz | Brightness: | ≥500cd/sqm |
| Lamp Type: | SMD1010 | Weight: | 10.5±0.5kg |
| High Light: | P1.2 LED Screen Display Panel,LED Screen Display Panel 3840Hz,Indoor P1.2 LED Screen |
||
Product Description

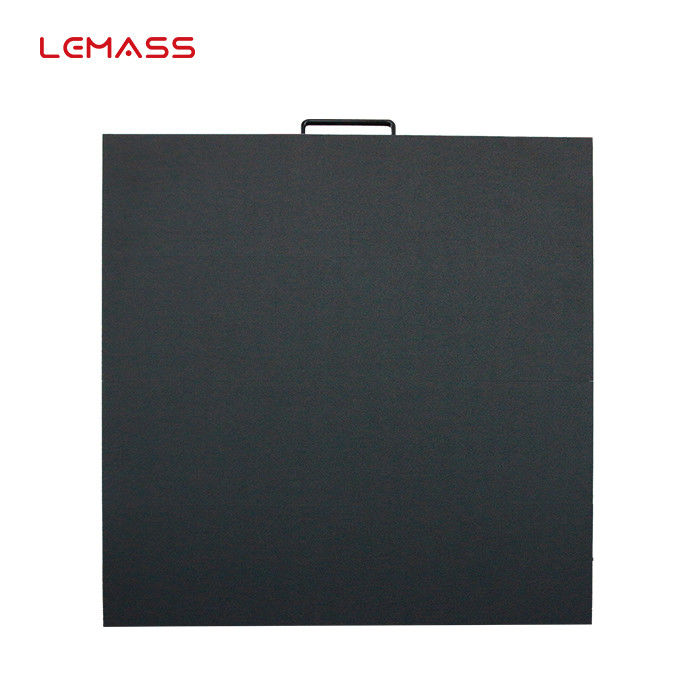

P1.2 indoor LED wall video screen cabinet 640*640mm MH Plus high refresh rate
Description:
Meaning of Led Wall: Ledwalls or led walls are big screens made up of light emitting diodes to display video and any other visual content as if they were computer monitors. As the word says in English, the feeling it gives when looking at is that of a massive luminous wall, without any junction between the modules and cabinets that compose it, thus allowing you to cover with videos, digitize any space in continuity. In the narrow meaning of the term, the word “led wall” is normally used in scenography and (television, virtual, production) studios or wherever the screen is shot by professional cameras. But now the name has been extended to all applications, like for led displays or led screens not only for indoors but also for outdoors, for example for digital billboards.
Quick Detail:
· High strength aluminum alloy structure
· Multi-directional adjustment
· All-round cooling system
· 160° ultra-wide viewing angle
· High refresh and high quality PWM drive IC
· Easy to install and maintain
Specifications:
| Parameter Item | MH1.2-A Plus |
| Pixel Pitch (mm) | 1.25 |
| Pixel Density (pixels/sqm) | 640,000 |
| Module Resolution | 256x128 |
| Cabinet Resolution | 512x512 |
| Mask | No |
| Lamp Type | SMD1010 |
| Module Size (mm) | 320×160 |
| Module Weight (kg) | 0.47±0.05 |
| Cabinet Size (mm) | 640x640x67 |
| Cabinet Weight (kg) | 10.5±0.5 |
| Brightness (cd/sqm) | ≥500 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 3000~15000 |
| Control System | Synchronous Control |
| Protection Level | Front IP31, Rear IP43 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 3840 |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤490,Ave:≤165 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -20~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

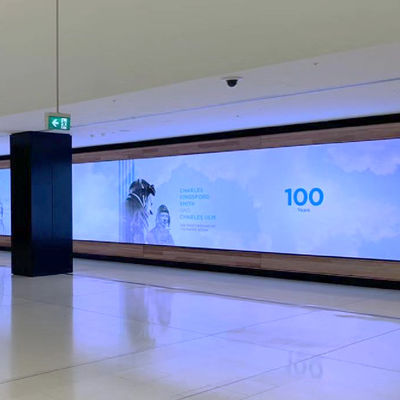

MH is widely used in commercial advertising, shopping malls, large occasions, etc.
