SMD LED Video Wall Panels , P2 Indoor LED Display 3840Hz High Refresh Rate
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P2 indoor SMD technology LED display cabinet |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Cabinet packing (size: L543mm*W191mm*H696mm) |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P2 Indoor SMD Technology LED Display Cabinet | Size: | 640×640mm |
|---|---|---|---|
| Pixel Pitch: | 2.0mm | Resolution: | 320x320 |
| Features: | High Refresh Rate 3840Hz | Brightness: | ≥450cd/sqm |
| Lamp Type: | SMD1515 | Weight: | 10.5±0.5kg |
| High Light: | SMD LED Video Wall Panels,P2 LED Video Wall Panels,3840Hz P2 Indoor LED Display |
||
Product Description

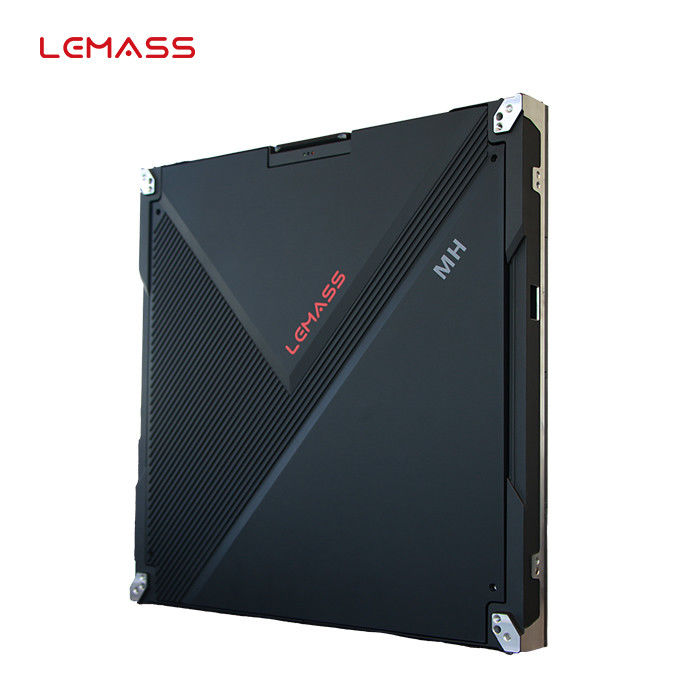

P2 indoor SMD technology LED display cabinet 640*640mm MH Plus easy to install and maintain
Description:
Difference between SMD or DIP LEDs
DIP technology uses cylindrical LEDs welded through the printed circuit boards ending in a hemispherical dome, a lens for maximizing light intensity. Each single LED can generate only one color and that is why three separate RGB LEDs (red, green and blue) are used in a triangle shape. This technology is still used for large outdoor installations. In SMD technology, three small diodes are still used (the usual red, green and blue RGB) but all of the three are placed inside a single square capsule and welded on top of the printed circuit board. With this “all in one” solution, a shorter distance between the individual pixels is guaranteed, with the greatest advantage of obtaining high resolutions, which means more defined pictures at a shorter viewing distance.
Quick Detail:
· High strength aluminum alloy structure
· Multi-directional adjustment
· All-round cooling system
· 160° ultra-wide viewing angle
· High refresh and high quality PWM drive IC
· Easy to install and maintain
Specifications:
| Parameter Item | MH2-A Plus |
| Pixel Pitch (mm) | 2.0 |
| Pixel Density (pixels/sqm) | 250,000 |
| Module Resolution | 160x80 |
| Cabinet Resolution | 320x320 |
| Mask | No |
| Lamp Type | SMD1515 |
| Module Size (mm) | 320×160 |
| Module Weight (kg) | 0.47±0.05 |
| Cabinet Size (mm) | 640x640x67 |
| Cabinet Weight (kg) | 10.5±0.5 |
| Brightness (cd/sqm) | ≥450 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 3000~15000 |
| Control System | Synchronous Control |
| Protection Level | Front IP31, Rear IP43 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 3840 |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤490,Ave:≤165 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -20~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

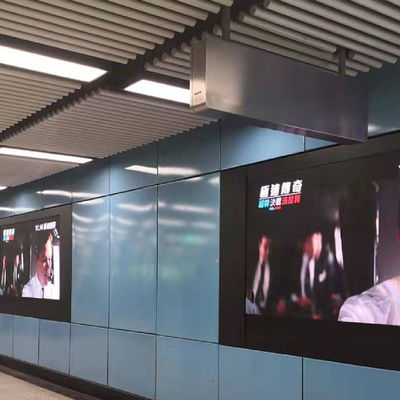

MH is widely used in commercial advertising, shopping malls, large occasions, etc.
