3D HDR LED Screen Display Panel P1.2 Multipurpose With Aluminum Structure
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.2 Wholesale LED Display Module |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.2 Wholesale LED Display Module | Size: | 320×160mm |
|---|---|---|---|
| Pixel Pitch: | 1.25mm | Resolution: | 256×128 |
| Features: | Ultra-thin&light Aluminum Structure | Brightness: | 650cd/sqm |
| Lamp Type: | SMD1010 | Weight: | 0.55±0.05 |
| High Light: | LED Screen Display Panel P1.2,LED Screen Display Panel Multipurpose,Aluminum P1.2 LED Display |
||
Product Description

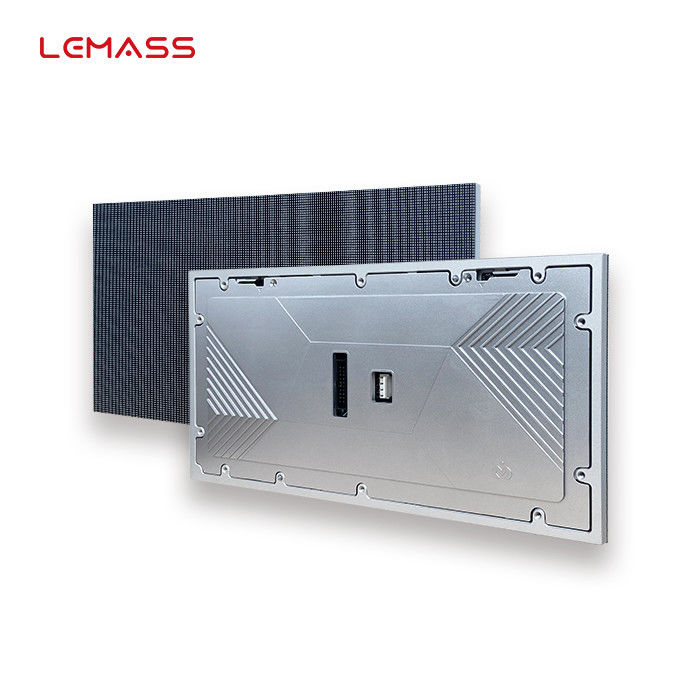

P1.2 Wholesale LED Display Module 320*160mm MSA Series Ultra-Thin&Light Aluminum Structure
Description:
MSA Indoor Series LED module (aluminum shell structure design, ratio 2:1) has 4K display effect, equipped with AI storage chip and intelligent color temperature adjustment. It supports various installation methods and can be used to build flat screens or curved screens. MSA series is a wise choice for high-end conferences, controlling centers, data centers, etc.
Quick Detail:
· Ultra-thin&light aluminum structure
· Efficient heat dissipation
· AI intelligent module
· Color gamut up to 130% DCI-P3
· Filter blue light for eye protection
· Support 3D/HDR display
Specifications:
| Parameter Item | MSA1.2 |
| Pixel Pitch (mm) | 1.25 |
| Pixel Density (pixels/sqm) | 640,000 |
| Module Resolution | 256×128 |
| Mask | No |
| Lamp Type | SMD1010 |
| Module Size (mm) | 320×160×10 |
| Module Weight (kg) | 0.55±0.05 |
| Brightness (cd/sqm) | 650 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤460, Ave:≤155 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

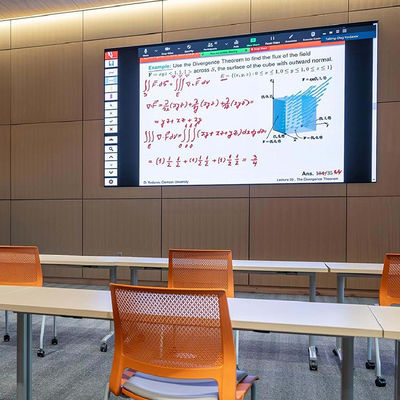

Widely used in shopping malls, exhibition halls, conference centers, etc.
