1.86mm Pixel Pitch LED Screen Display Panel 320×160mm With AI Intelligent Storage
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.8 indoor led screen panels module |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.8 Indoor Led Screen Panels Module | Size: | 320×160mm |
|---|---|---|---|
| Pixel Pitch: | 1.86mm | Resolution: | 172×86 |
| Features: | Ultra-thin&light Aluminum Structure | Brightness: | 650cd/sqm |
| Lamp Type: | SMD1515 | Weight: | 0.55±0.05 |
| High Light: | 1.86mm LED Screen Display Panel,LED Screen Display Panel 160mm,320mm led display panel |
||
Product Description

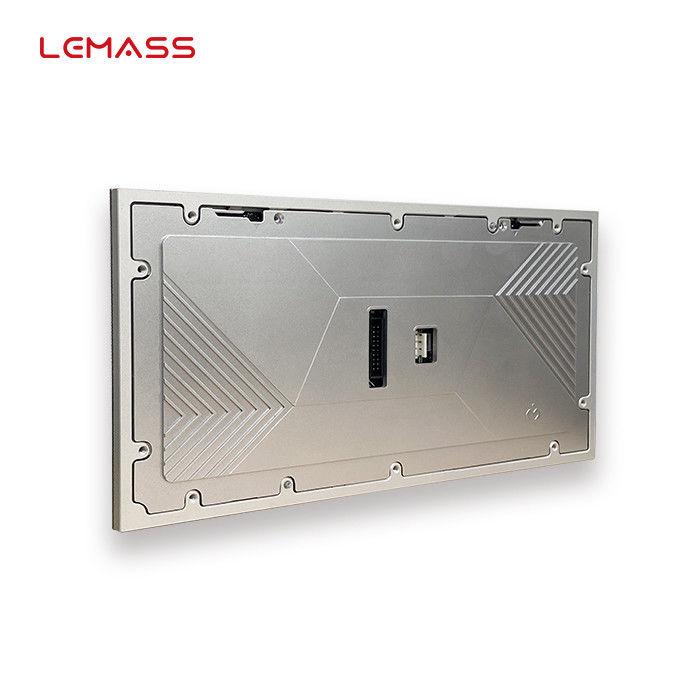

P1.8 indoor led screen panels module 320*160mm AI intelligent storage
Description:
Indoor LED screens tailored to your needs: Every Lemass indoor LED screen starts with you. From size to pixels per m2 and from viewing angle to brightness, we tailor the screen to your needs.Indoor LED screens require less resistance to elements such as water or wind, but there are other elements of great importance. For instance, a higher refresh rate, higher resolution and a seamless connection of the various screens.
Quick Detail:
· Ultra-thin&light aluminum structure
· Efficient heat dissipation
· AI intelligent module
· Color gamut up to 130% DCI-P3
· Filter blue light for eye protection
· Support 3D/HDR display
Specifications:
| Parameter Item | MSA1.8 |
| Pixel Pitch (mm) | 1.86 |
| Pixel Density (pixels/sqm) | 288,906 |
| Module Resolution | 172×86 |
| Mask | No |
| Lamp Type | SMD1515 |
| Module Size (mm) | 320×160×10 |
| Module Weight (kg) | 0.55±0.05 |
| Brightness (cd/sqm) | 650 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤370, Ave:≤125 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

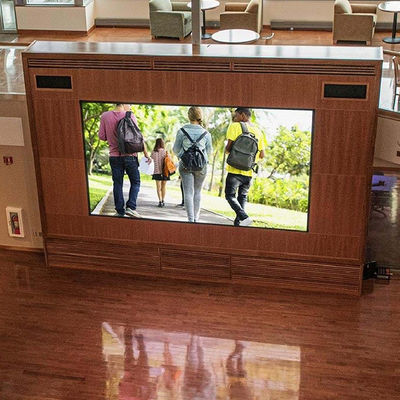

Widely used in shopping malls, exhibition halls, conference centers, etc.
