2mm Pixel Pitch Indoor LED Panel Display 320×160mm Support 3D HDR
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P2 indoor pixel led panels digital module |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P2 Indoor Pixel Led Panels Digital Module | Size: | 320×160mm |
|---|---|---|---|
| Pixel Pitch: | 2mm | Resolution: | 160×80 |
| Features: | Ultra-thin&light Aluminum Structure | Brightness: | 650cd/sqm |
| Lamp Type: | SMD1515 | Weight: | 0.55±0.05 |
| High Light: | 2mm Indoor LED Panel Display,160mm Indoor LED Panel Display,HDR indoor led display panel |
||
Product Description

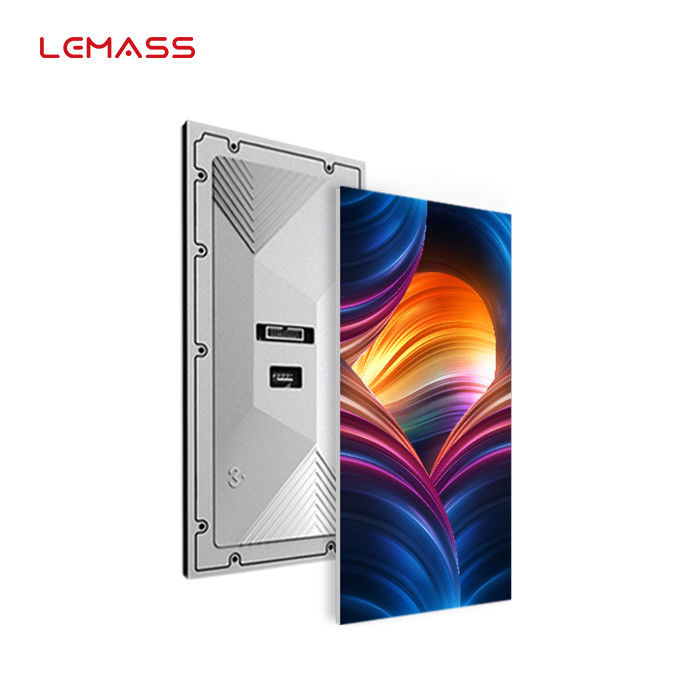

P2 indoor pixel led panels digital module 320*160mm efficient heat dissipation
Description:
The indoor LED screen is ideal for digital signage and advertising, and viewers are often far away from the screen. According to the best distance of the viewer and the scene of the display effect, different LED modules are finally selected. P1.25/P1.56/P1.875/P2/P 2.5, the smaller pixel pitches, the higher resolution of the final LED display wall.
Quick Detail:
· Ultra-thin&light aluminum structure
· Efficient heat dissipation
· AI intelligent module
· Color gamut up to 130% DCI-P3
· Filter blue light for eye protection
· Support 3D/HDR display
Specifications:
| Parameter Item | MSA2.0 |
| Pixel Pitch (mm) | 2 |
| Pixel Density (pixels/sqm) | 250,000 |
| Module Resolution | 160×80 |
| Mask | No |
| Lamp Type | SMD1515 |
| Module Size (mm) | 320×160×10 |
| Module Weight (kg) | 0.55±0.05 |
| Brightness (cd/sqm) | 650 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤370, Ave:≤125 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

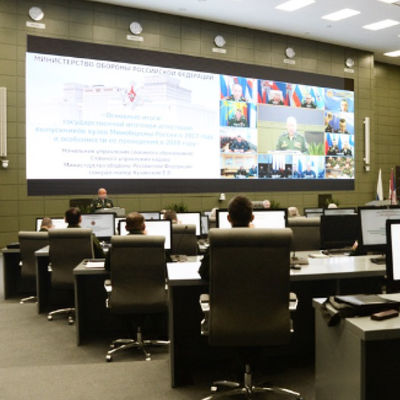

Widely used in shopping malls, exhibition halls, conference centers, etc.
