P1.5 Advertising LED Video Wall Display 640×640mm With AI Intelligent Storage
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.5 indoor hanging advertising LED wall display |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Cabinet packing (size: L543mm*W191mm*H696mm) |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.5 Indoor Hanging Advertising LED Wall Display | Size: | 640×640mm |
|---|---|---|---|
| Pixel Pitch: | 1.538mm | Resolution: | 416x416 |
| Features: | High Refresh Rate 3840Hz | Brightness: | ≥450cd/sqm |
| Lamp Type: | SMD1212 | Weight: | 10.5±0.5kg |
| High Light: | P1.5 LED Video Wall Display,640mm LED Video Wall Display,Advertising P1.5 LED display |
||
Product Description

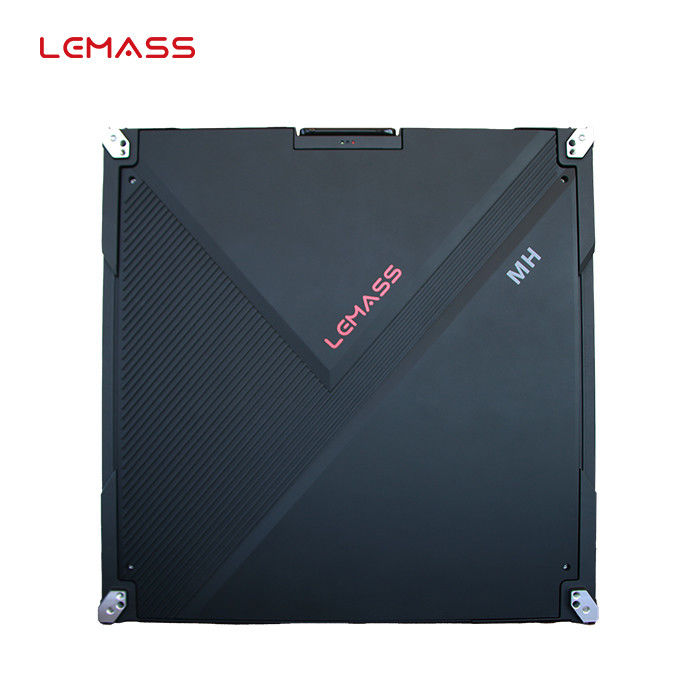

P1.5 indoor hanging advertising LED wall display 640*640mm MH Plus AI intelligent storage
Description:
There are several models of LED video walls available in the market, that have different technical characteristics depending on IP protection degree (from 30 to 68), brightness (from 600 to 15,000 NIT), consumption (from 300 to 1000 W / m2) , type of LED (SMD or DIP) and its size (from 1010 to 3535), refresh rate (from 1920 to over 3840 hZ), access for maintenance (front and / or rear) as well as the pixel pitch (from 0.7 to 50 mm) and overall size (standard or customizable). In order to select the right LED video wall model, you must rely on a specialized and experienced supplier, such as MacroPix, able to support the customer in the most appropriate choice from a technical and commercial point of view, as the price varies a lot depending on the technical features and these depend a lot on the location where you want to install and on the communication needs.
Quick Detail:
· High strength aluminum alloy structure
· Multi-directional adjustment
· All-round cooling system
· 160° ultra-wide viewing angle
· High refresh and high quality PWM drive IC
· Easy to install and maintain
Specifications:
| Parameter Item | MH1.5-A Plus |
| Pixel Pitch (mm) | 1.538 |
| Pixel Density (pixels/sqm) | 422,500 |
| Module Resolution | 208x104 |
| Cabinet Resolution | 416x416 |
| Mask | Optional |
| Lamp Type | SMD1212 |
| Module Size (mm) | 320×160 |
| Module Weight (kg) | 0.47±0.05 |
| Cabinet Size (mm) | 640x640x67 |
| Cabinet Weight (kg) | 10.5±0.5 |
| Brightness (cd/sqm) | ≥450 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 3000~15000 |
| Control System | Synchronous Control |
| Protection Level | Front IP31, Rear IP43 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 3840 |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤490,Ave:≤165 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -20~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

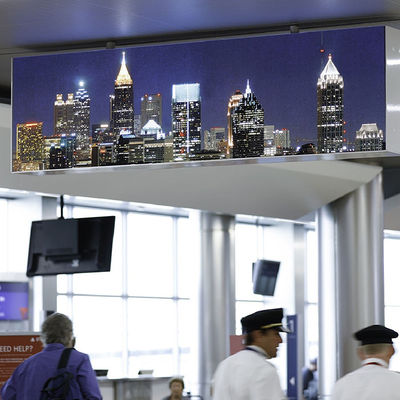

MH is widely used in commercial advertising, shopping malls, large occasions, etc.
