P2.5 SMD 2121 LED Wall Display Screen 320×160mm For Indoor Stage
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P2.5 indoor stage LED wall display module |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P2.5 Indoor Stage LED Wall Display Module | Size: | 320×160mm |
|---|---|---|---|
| Pixel Pitch: | 2.5mm | Resolution: | 128×64 |
| Features: | Ultra-thin&light Aluminum Structure | Brightness: | 850cd/sqm |
| Lamp Type: | SMD2121 | Weight: | 0.55±0.05 |
| High Light: | 2121 LED Wall Display Screen,160mm LED Wall Display Screen,indoor led display P2.5 |
||
Product Description
P2.5 indoor stage LED wall display module 320*160mm color gamut up to 130% DCI-P3
Description:
These high-resolution screens make your indoor space lively and help entertain your visitors by viewing exceptional quality content. High level of scratch resistance,accurate aluminum framework ensures seamless surface and great heat dissipation, fan-less design, noise-free. It’s available from small pixel pitch 1.25mm to 2.5mm.
Quick Detail:
· Ultra-thin&light aluminum structure
· Efficient heat dissipation
· AI intelligent module
· Color gamut up to 130% DCI-P3
· Filter blue light for eye protection
· Support 3D/HDR display
Specifications:
| Parameter Item | MSA2.5 |
| Pixel Pitch (mm) | 2.5 |
| Pixel Density (pixels/sqm)16 | 160,000 |
| Module Resolution | 128×64 |
| Mask | Optional |
| Lamp Type | SMD2121 |
| Module Size (mm) | 320×160×10 |
| Module Weight (kg) | 0.55±0.05 |
| Brightness (cd/sqm) | 850 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤420, Ave:≤140 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

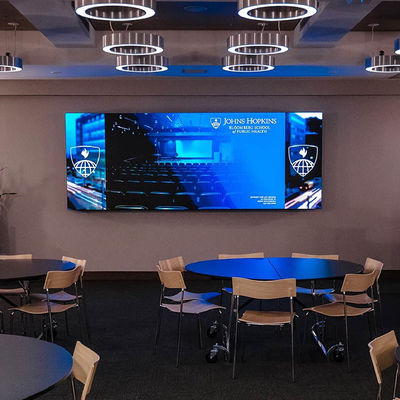

Widely used in shopping malls, exhibition halls, conference centers, etc.
