320×320mm Commercial Outdoor LED Module Display P8 With DIP 3 In 1 Process
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P8 DIP 3in1 process outdoor LED module |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P8 DIP 3in1 Process Outdoor LED Module | Size: | 320x320mm |
|---|---|---|---|
| Pixel Pitch: | 8mm | Resolution: | 40x40 |
| Features: | DIP 3in1 Process | Brightness: | ≥8000cd/sqm |
| Lamp Type: | DIP570 | Weight: | 2±0.05 |
| High Light: | Outdoor LED Module P8,Commercial LED Module P8,320mm DIP led display |
||
Product Description

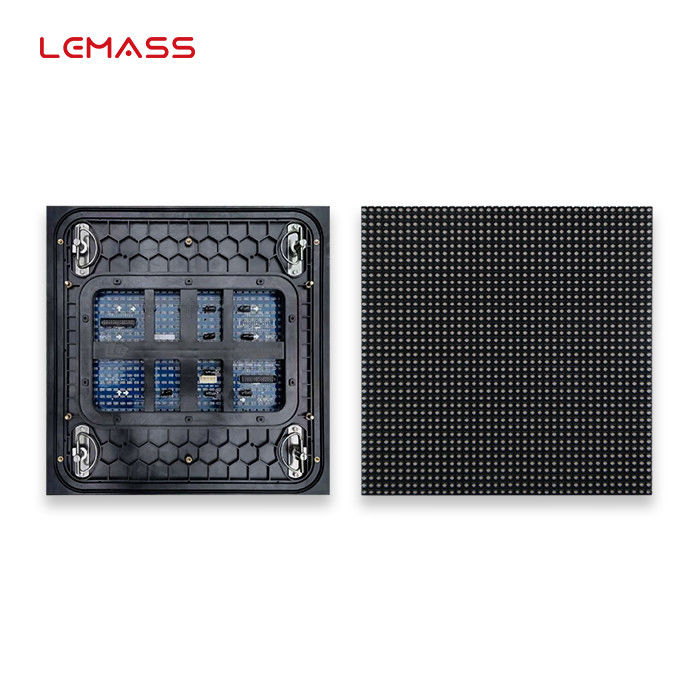

P8 DIP 3 in1 process outdoor LED module 320*320mm LMS-K Series low power consumption
Description:
LMS-K Outdoor Series (DIP 3in1 process, ratio 1:1, high brightness) is a practical product which technology, process, material and production are strictly in accordance with the standards produced by LEMASS. LMS-K has the characteristics of high brightness, energy saving, front&rear maintenance, it is widely used in building outdoor media, shopping mall, etc.
Quick Detail:
· DIP 3in1 production process
· Ultra low power consumption
· Ultra high brightness
· Front and rear maintenance
· Support 3D/HDR display
· High refresh and high quality drive IC
Specifications:
| Parameter Item | LMS-K8A1 |
| Pixel Pitch (mm) | 8 |
| Pixel Density (pixels/sqm) | 15,625 |
| Module Resolution | 40x40 |
| Mask | Standard |
| Lamp Type | DIP570 |
| Module Size (mm) | 320x320x30 |
| Module Weight (kg) | 2±0.05 |
| Brightness (cd/sqm) | ≥8000 |
| Gray Scale (Bit) | 14 |
| Color Temp (k) | 3000~15000 |
| Control System | Synchronous Control |
| Protection Level | Front IP65, Rear IP54 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate(Hz) | 1920/3840 (Optional) |
| Working Voltage | AC:100V~240V±10% |
| Power Consumption (W/ m²) | Max:≤420,Ave:≤100 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -20~+45 |
| Storage Temp (℃) | -40~+60 |
| Humidity Range(Rh) | 10%~90%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

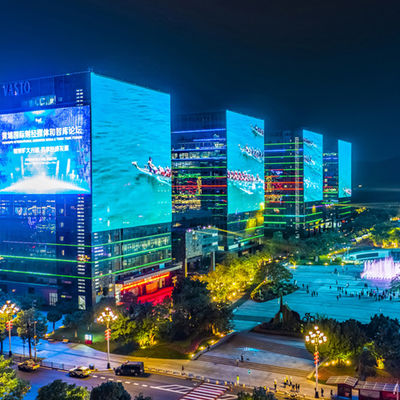

Widely used in shopping malls, exhibition halls, conference centers, etc.
