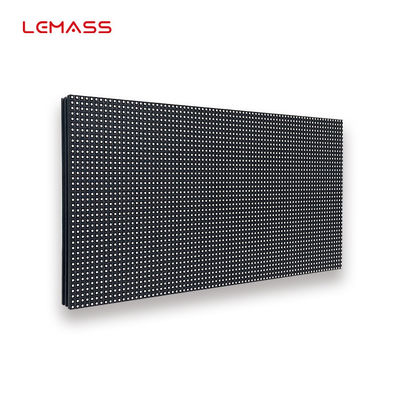

320×160mm P5 Outdoor LED Module , LED Panel Display Module With Pixel Correction
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P5 Outdoor led display RGB panel |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P5 Outdoor Led Display RGB Panel | Size: | 320×160mm |
|---|---|---|---|
| Pixel Pitch: | 5mm | Resolution: | 64×32 |
| Features: | Waterproof | Brightness: | 5500cd/sqm |
| Lamp Type: | SMD2727 | Weight: | 0.55±0.05kg |
| High Light: | P5 Outdoor LED Module,Panel P5 Outdoor LED Module,Pixel LED Panel Display Module |
||
Product Description
P5 Outdoor led display RGB panel 320*160mm MSG Series pixel by pixel correction
Description:
Digital ad space is cheaper than traditional billboards.
With digital displays, there are no printing costs for any vinyl or other poster materials. The advertisement is simply an image that is displayed on a large screen, so there is no concern about printing quality or weather damage. Not only are you saving on printing costs, you are also saving on time. If an advertisement is displayed only at certain times, you are allowing your ad to skip that times of day where there isn’t nearly as much traffic and is likely just costing you money.
Quick Detail:
· Waterproof IP66, Fire rating: UL94V-0
· 160° ultra-wide viewing angle
· Pixel by pixel correction
· Support 3D/HDR display
· High refresh and high quality drive IC
· Low temperature rise, excellent heat dissipation
Specifications:
| Parameter Item | MSG5S |
| Pixel Pitch (mm) | 5 |
| Pixel Density (pixels/sqm) | 40,000 |
| Module Resolution | 64×32 |
| Mask | Standard |
| Lamp Type | SMD2727 |
| Module Size (mm) | 320x160x15 |
| Module Weight (kg) | 0.55±0.05 |
| Brightness (cd/sqm) | 5500 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | Front IP43, Rear IP65 |
| Intelligent Storage | NO |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤700,Ave:≤235 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10~+40 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range(Rh) | 10%80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

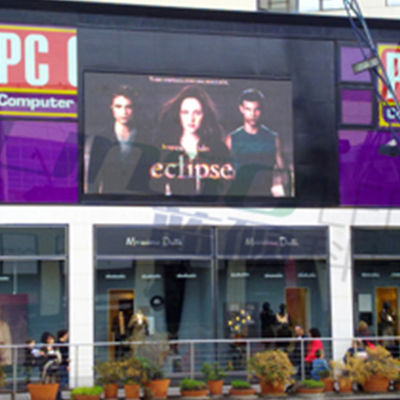

Widely used in outdoor advertising, government projects, building exterior walls, etc.
