SMD 1212 Rental Micro LED Display Panel 500×500mm Size Integrated Die Casting Forming
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.5 indoor SMD1212 rental LED display |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.5 Indoor SMD1212 Rental LED Display | Size: | 500×500mm |
|---|---|---|---|
| Pixel Pitch: | 1.56mm | Resolution: | 320x320 |
| Features: | Integrated Die-casting Forming | Brightness: | 600~800cd/sqm |
| Lamp Type: | SMD1212 | Weight: | 7.7±0.1 |
| High Light: | 1212 Micro LED Display Panel,SMD Micro LED Display Panel,500mm micro led panel |
||
Product Description
P1.5 indoor SMD1212 rental LED display 500*500mm MR Series service years warranty
Description:

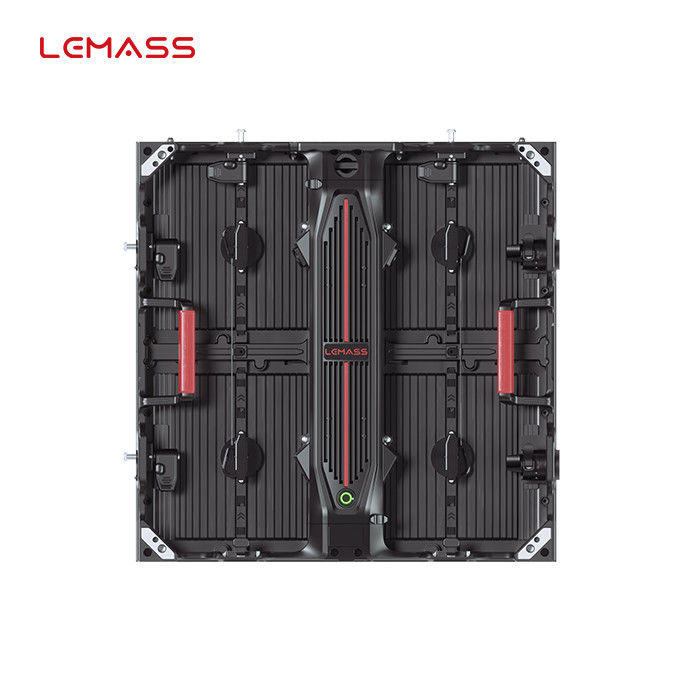

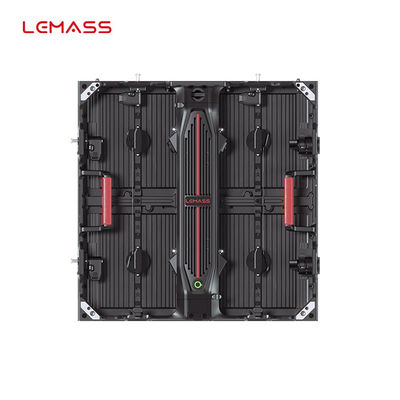

MR cabinet series (display ratio1:1, indoor or outdoor applications) adopts an integrated die-casting aluminum structure with special fast locks, supports front and rear maintenance with specific setting and hanging accessories, which can realize quick installation and save installation costs. The radian of the screen can be changed accurately by switching the flange angle. The module of MR is equipped with safety ropes and protection mechanism as standard. Widely used in stages lighting, shopping malls, variety show venues, etc.
Quick Detail:
· Integrated die-casting forming
· Easy to install and maintain
· Multi-scene application
· Ultra high refresh rate
· 160° ultra wide viewing angle
· High quality ODM lamps
Specifications:
| Parameter Item | MR1.5 |
| Pixel Pitch (mm) | 1.56 |
| Pixel Density (pixels/sqm) | 409,600 |
| Module Resolution | 160x160 |
| Cabinet Resolution | 320x320 |
| Mask | Optional |
| Lamp Type | SMD 3in1 1212 |
| Module Size (mm) | 250x250 |
| Cabinet Size (mm) | 500x500x67 |
| Cabinet Weight (kg) | 7.7±0.1 |
| Brightness (cd/sqm) | 600~800 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 3000~15000 |
| Perspective (horiz; Vert) ° | 160 ; 140 |
| Uniformity Of brightness | ≥97% |
| Contrast | 5000:1 |
| Control System | Synchronous Control |
| Protection Level | IP40 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS |
| Refresh Rate (Hz) | ≥3840 |
| Working Voltage | AC:100~240V(50-60Hz) |
| Power Consumption (W/ m²) | Max:≤580, Ave:≤195 |
| Single Carton Consumption(W) | 145 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -20～+60 |
| Humidity Range(Rh) | 10%~85%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:
Widely used in building exterior walls, shopping malls, outdoor advertising, etc.
