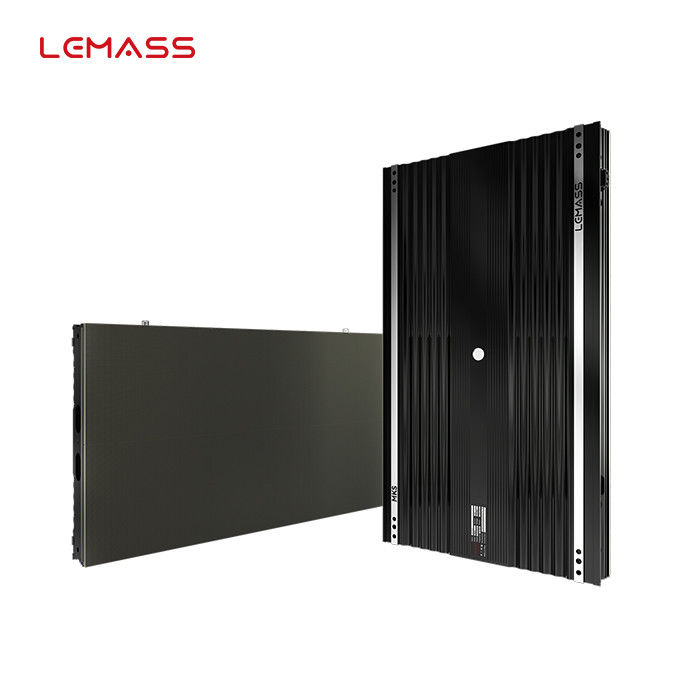

P0.9 Indoor Micro LED Display Panel 3840Hz With All Round Heat Dissipation
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P0.9 indoor retail case LED screen display |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Cabinet packing (size: L543mm*W191mm*H696mm) |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P0.9 Indoor Retail Case LED Screen Display | Size: | 600x337.5mm |
|---|---|---|---|
| Pixel Pitch: | 0.9375mm | Resolution: | 640x360 |
| Features: | High Refresh Rate 3840Hz | Brightness: | ≥600cd/sqm |
| Lamp Type: | SMD 3in1 0606 | Weight: | 6.5±0.1 |
| High Light: | Micro LED Display Panel 3840Hz,P0.9 Micro LED Display Panel,Micro indoor led display panel |
||
Product Description
P0.9 indoor retail case LED screen display 600*337.5mm MKS all-round heat dissipation
Description:
MKS Series cabinet indoor (16:9 ratio, front maintenance, System & PSU Backup) made of high-strength U-shaped aluminum alloy structure design which greatly increases the heat dissipation area and improves the overall display effect. Floating connector between modules and IC boards, which achieves more stable excellent flatness of the screen. Full front maintenance magnetic design to suitable for more application scenarios. Widely used in controlling center, conference room, TV station, etc.
Quick Detail:
· iCool all-round heat dissipation system
· Magnetic installation design
· System & PSU Backup
· Multi-directional adjustment
· All new structural process design
· AI intelligent adjustment system
Specifications:
| Parameter Item | MKS0.9 |
| Pixel Pitch (mm) | 0.9375 |
| Pixel Density (pixels/sqm) | 1,137,777 |
| Module Resolution | 320x180 |
| Cabinet Resolution | 640x360 |
| Mask | No |
| Lamp Type | SMD 3in1 0606 |
| Module Size (mm) | 300x168.75 |
| Cabinet Size (mm) | 600x337.5x57 |
| Cabinet Weight (kg) | 6.5±0.1 |
| Brightness (cd/sqm) | ≥600 |
| Gray Scale (Bit) | 14 |
| Color Temp (k) | 3000~15000 |
| Perspective (horiz; Vert) ° | 160 ; 145 |
| Uniformity Of brightness | ≥97% |
| Contrast | 5000:01:00 |
| Control System | Synchronous Control |
| Protection Level | Front IP31, Rear IP43 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS-120FPS |
| Refresh Rate (Hz) | ≥3840 |
| Working Voltage | AC:100~240V(50-60Hz) |
| Power Consumption (W/ m²) | Max:≤600,Ave:≤200 |
| Single Carton Consumption(W) | 120 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -20～+60 |
| Humidity Range(Rh) | 10%~85%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:
MH is widely used in commercial advertising, shopping malls, large occasions, etc.
