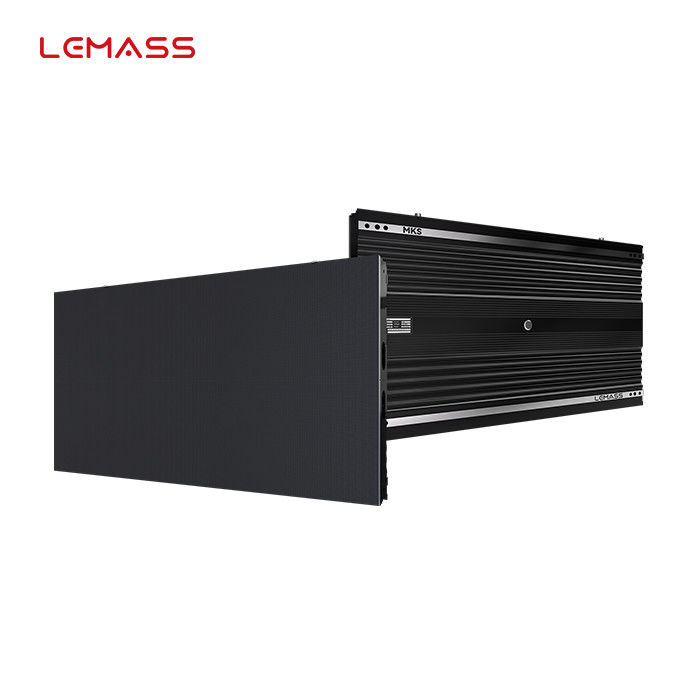

HDR P1.5 Advertising LED Display Screen 600x337.5mm Size Multi Directional
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.5 HDR display LED advertising board |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Cabinet packing (size: L543mm*W191mm*H696mm) |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.5 HDR Display LED Advertising Board | Size: | 600x337.5mm |
|---|---|---|---|
| Pixel Pitch: | 1.5625mm | Resolution: | 384x216 |
| Features: | High Refresh Rate 3840Hz | Brightness: | ≥600cd/sqm |
| Lamp Type: | SMD 3in1 1212 | Weight: | 6.5±0.1 |
| High Light: | P1.5 Advertising LED Display Screen,HDR Advertising LED Display Screen,337.5mm advertising display screen led |
||
Product Description
P1.5 HDR display LED advertising board 600*337.5mm MKS standard format 16:9
Description:
Technology: how do led walls work?
When we talk about LED walls, we are therefore talking about cutting-edge technology that is increasingly requested by architects, designers, consultants, creatives, professionals who see the dream come true of digitizing any surface, even curved or with special shapes such as squares, triangles, parallelepipeds, spheres, cubes. MacroPix is a team of experts who have been working with this technology for years and know all its secrets. Unlike many players in this business, we have proprietary technology and software, we select and strictly control the quality of suppliers, we do not promise but we GUARANTEE the safe use of the product for as long as you need. Thanks to this differentiation, MacroPix is today the market leader in Italy and a well recognized brand Internationally.
Quick Detail:
· iCool all-round heat dissipation system
· Magnetic installation design
· System & PSU Backup
· Multi-directional adjustment
· All new structural process design
· AI intelligent adjustment system
Specifications:
| Parameter Item | MKS1.5 |
| Pixel Pitch (mm) | 1.5625 |
| Pixel Density (pixels/sqm) | 409,600 |
| Module Resolution | 192x108 |
| Cabinet Resolution | 384x216 |
| Mask | No |
| Lamp Type | SMD 3in1 1212 |
| Module Size (mm) | 300x168.75 |
| Cabinet Size (mm) | 600x337.5x57 |
| Cabinet Weight (kg) | 6.5±0.1 |
| Brightness (cd/sqm) | ≥600 |
| Gray Scale (Bit) | 14 |
| Color Temp (k) | 3000~15000 |
| Perspective (horiz; Vert) ° | 160 ; 145 |
| Uniformity Of brightness | ≥97% |
| Contrast | 5000:01:00 |
| Control System | Synchronous Control |
| Protection Level | Front IP31, Rear IP43 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS-120FPS |
| Refresh Rate (Hz) | ≥3840 |
| Working Voltage | AC:100~240V(50-60Hz) |
| Power Consumption (W/ m²) | Max:≤600,Ave:≤200 |
| Single Carton Consumption(W) | 120 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -20～+60 |
| Humidity Range(Rh) | 10%~85%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

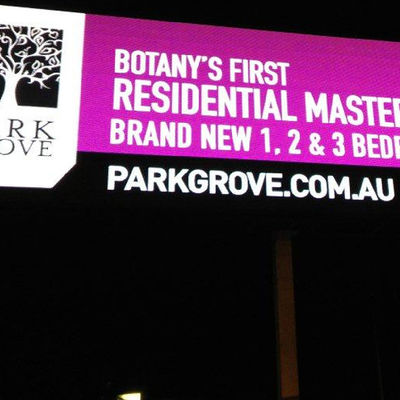

MH is widely used in commercial advertising, shopping malls, large occasions, etc.
