Indoor P1.2 Small Pixel LED Display Panel 3840Hz High Refresh Rate
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.2 fine-pitch LED indoor screen cabinet |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Cabinet packing (size: L543mm*W191mm*H696mm) |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.2 Fine-pitch LED Indoor Screen Cabinet | Size: | 600x337.5mm |
|---|---|---|---|
| Pixel Pitch: | 1.25mm | Resolution: | 480×270 |
| Features: | High Refresh Rate 3840Hz | Brightness: | ≥600cd/sqm |
| Lamp Type: | SMD 3in1 1010 | Weight: | 6.5±0.1 |
| High Light: | P1.2 Small Pixel LED Display,3840Hz Small Pixel LED Display,Indoor led pixel display panel |
||
Product Description

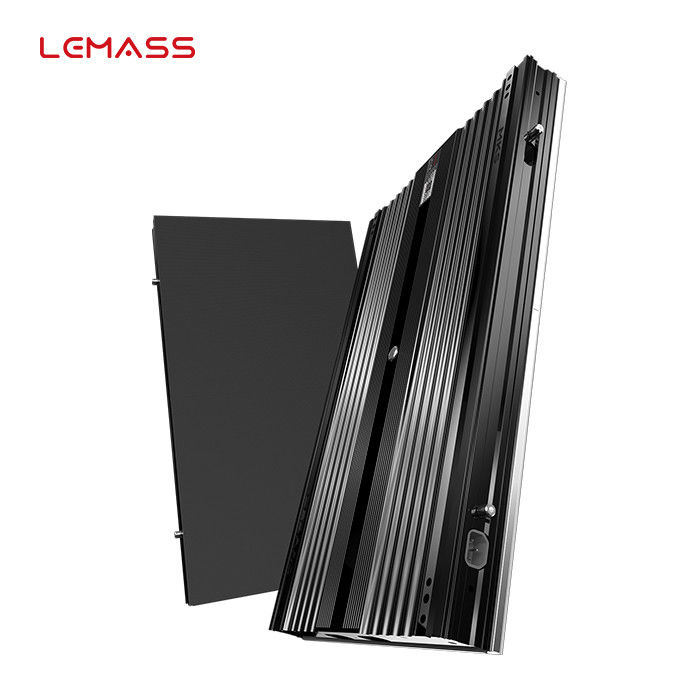

P1.2 fine-pitch LED indoor screen cabinet 600*337.5mm MKS magnetic installation design
Description:
Pixel pitch of led walls
The distance expressed in mm between the individual LEDs is called pitch. This parameter is fundamental for the choice of a specific LED wall and its location, as it determines the graphic resolution and the distance from which the LED wall is clearly visible. To simplify, if you intend to install a large LED screen, of tens of square meters, on a roof of a building to convey standard advertising messages, a pitch of 10 mm or more can be just fine. If, on the other hand, you intend to install a LED screen of few square meters in an indoor space to display live or pre-recorded video, with up to 4K resolutions and beyond, then a very narrow pitch, between 1.2 and 1.9 mm, is recommended.
Quick Detail:
· iCool all-round heat dissipation system
· Magnetic installation design
· System & PSU Backup
· Multi-directional adjustment
· All new structural process design
· AI intelligent adjustment system
Specifications:
| Parameter Item | MKS1.2 |
| Pixel Pitch (mm) | 1.25 |
| Pixel Density (pixels/sqm) | 640,000 |
| Module Resolution | 240x135 |
| Cabinet Resolution | 480×270 |
| Mask | No |
| Lamp Type | SMD 3in1 1010 |
| Module Size (mm) | 300x168.75 |
| Cabinet Size (mm) | 600x337.5x57 |
| Cabinet Weight (kg) | 6.5±0.1 |
| Brightness (cd/sqm) | ≥600 |
| Gray Scale (Bit) | 14 |
| Color Temp (k) | 3000~15000 |
| Perspective (horiz; Vert) ° | 160 ; 145 |
| Uniformity Of brightness | ≥97% |
| Contrast | 5000:01:00 |
| Control System | Synchronous Control |
| Protection Level | Front IP31, Rear IP43 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS-120FPS |
| Refresh Rate (Hz) | ≥3840 |
| Working Voltage | AC:100~240V(50-60Hz) |
| Power Consumption (W/ m²) | Max:≤600,Ave:≤200 |
| Single Carton Consumption(W) | 120 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -20～+60 |
| Humidity Range(Rh) | 10%~85%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

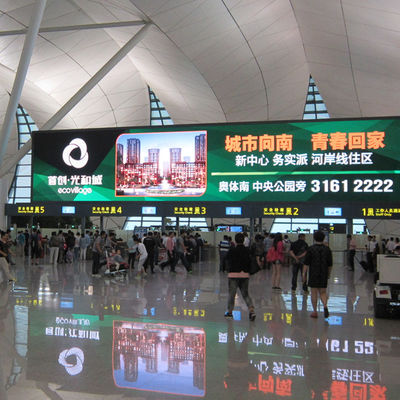

MH is widely used in commercial advertising, shopping malls, large occasions, etc.
