P1.8 Multi Directional LED Video Display Panel 3840Hz High Refresh Rate
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.8 latest professional LED screen panel display |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Cabinet packing (size: L543mm*W191mm*H696mm) |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.8 Latest Professional LED Screen Panel Display | Size: | 600x337.5mm |
|---|---|---|---|
| Pixel Pitch: | 1.875mm | Resolution: | 320x180 |
| Features: | High Refresh Rate 3840Hz | Brightness: | ≥600cd/sqm |
| Lamp Type: | SMD 3in1 1515 | Weight: | 6.5±0.1 |
| High Light: | LED Video Display Panel 3840Hz,P1.8 LED Video Display Panel,MultiDirectional panel led display |
||
Product Description

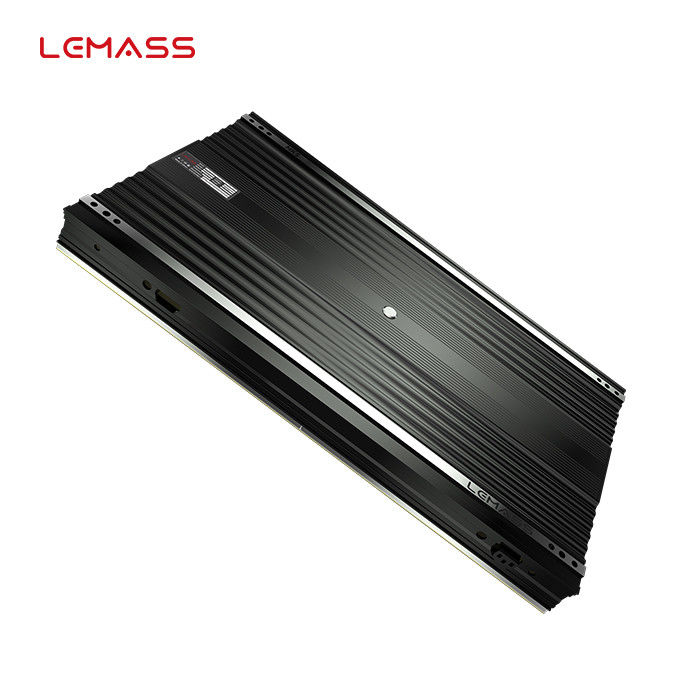

P1.8 latest professional LED screen panel display 600*337.5mm MKS all new structural process
Description:
With the proprietary “Omnibus” software, power consumption can be monitored based on each video content to be included in the playlist. And with the other proprietary software “Curator” you can manage the brightness of the ledwall automatically depending on the time, season, sun exposure (brightness above 5000 NIT and up to 12000 NIT allows viewing even in full exposure, while after sunset the brightness is brought down to less than 10%). It is also essential to know that MacroPix, among very few other companies in Europe, repairs LED modules down to the 1.2 mm pitch in its own laboratory.
Quick Detail:
· iCool all-round heat dissipation system
· Magnetic installation design
· System & PSU Backup
· Multi-directional adjustment
· All new structural process design
· AI intelligent adjustment system
Specifications:
| Parameter Item | MKS1.8 |
| Pixel Pitch (mm) | 1.875 |
| Pixel Density (pixels/sqm) | 284,444 |
| Module Resolution | 160x90 |
| Cabinet Resolution | 320x180 |
| Mask | No |
| Lamp Type | SMD 3in1 1515 |
| Module Size (mm) | 300x168.75 |
| Cabinet Size (mm) | 600x337.5x57 |
| Cabinet Weight (kg) | 6.5±0.1 |
| Brightness (cd/sqm) | ≥600 |
| Gray Scale (Bit) | 14 |
| Color Temp (k) | 3000~15000 |
| Perspective (horiz; Vert) ° | 160 ; 145 |
| Uniformity Of brightness | ≥97% |
| Contrast | 5000:01:00 |
| Control System | Synchronous Control |
| Protection Level | Front IP31, Rear IP43 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS-120FPS |
| Refresh Rate (Hz) | ≥3840 |
| Working Voltage | AC:100~240V(50-60Hz) |
| Power Consumption (W/ m²) | Max:≤600,Ave:≤200 |
| Single Carton Consumption(W) | 120 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -20～+60 |
| Humidity Range(Rh) | 10%~85%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

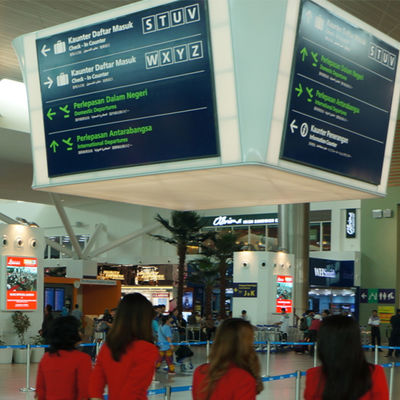

MH is widely used in commercial advertising, shopping malls, large occasions, etc.
