Large Fixed P1.8 Indoor LED Cabinet 640×640mm Multi Directional Adjustable
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.8 Indoor large fixed LED cabinet |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Cabinet packing (size: L543mm*W191mm*H696mm) |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.8 Indoor Large Fixed LED Cabinet | Size: | 640×640mm |
|---|---|---|---|
| Pixel Pitch: | 1.86mm | Resolution: | 344x344 |
| Features: | High Strength Aluminum Alloy Structure | Brightness: | ≥450cd/sqm |
| Lamp Type: | SMD1515 | Weight: | 9.7±0.5kg |
| High Light: | 640mm Indoor LED Cabinet,MultiDirectional Indoor LED Cabinet,Adjustable Indoor LED Cabinet |
||
Product Description

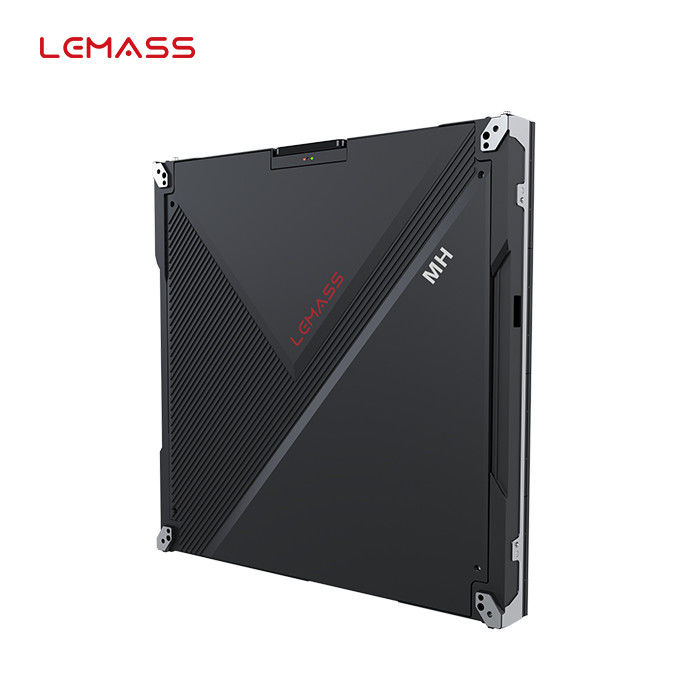

P1.8 Indoor large fixed LED cabinet 640*640mm MH Plus multi-directional adjustment
Description:
What is a Video Wall?
Constant is one of the leading video wall companies, utilizing advanced technology to create bespoke video wall displays for businesses and organizations around the world. But let’s go back to the basics – what is a video wall? A video wall is a large display that brings multiple video screens together to create a single, logical screen. They’re normally mounted to a wall, meaning the size of the display is only limited by the size of your building. This is incredibly useful because it allows you to bring together lots of data in one place and make it easy to consume. Perhaps the easiest way to picture it is by thinking of the screens you see in a space launch, or even a movie involving military command or the FBI. By giving an entire room easy access to large amounts of data, the video wall helps streamline operations and makes collaboration possible.
Quick Detail:
· High strength aluminum alloy structure
· Multi-directional adjustment
· All-round cooling system
· 160° ultra-wide viewing angle
· High refresh and high quality PWM drive IC
· Easy to install and maintain
Specifications:
| Parameter Item | MH1.8-G Plus |
| Pixel Pitch (mm) | 1.86 |
| Pixel Density (pixels/sqm) | 288,906 |
| Module Resolution | 172x86 |
| Cabinet Resolution | 344x344 |
| Mask | No |
| Lamp Type | SMD1515 |
| Module Size (mm) | 320×160 |
| Module Weight (kg) | 0.47±0.05 |
| Cabinet Size (mm) | 640x640x74 |
| Cabinet Weight (kg) | 9.7±0.5 |
| Brightness (cd/sqm) | ≥450 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | Front IP31, Rear IP43 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤490,Ave:≤165 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -20~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

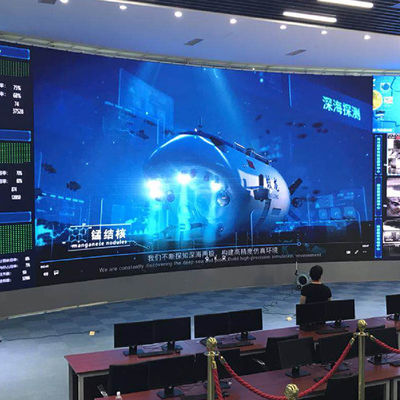

MH is widely used in commercial advertising, shopping malls, large occasions, etc.
