ODM P2.5 Indoor LED Cabinet Screen 640×480mm 3840Hz High Refresh Rate
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P2.5 ODM led lamp indoor screen display |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Cabinet packing (size: L543mm*W191mm*H696mm) |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P2.5 ODM Led Lamp Indoor Screen Display | Size: | 640×480mm |
|---|---|---|---|
| Pixel Pitch: | 2.5mm | Resolution: | 256×192 |
| Features: | High Strength Aluminum Alloy Structure | Brightness: | 650cd/sqm |
| Lamp Type: | SMD2121 | Weight: | 7.7±0.05kg |
| High Light: | ODM Indoor LED Cabinet,3840Hz Indoor LED Cabinet,Indoor P2.5 LED Screen |
||
Product Description
P2.5 ODM led lamp indoor screen display 640*480mm MH Series 3840Hz high refresh rate
Description:

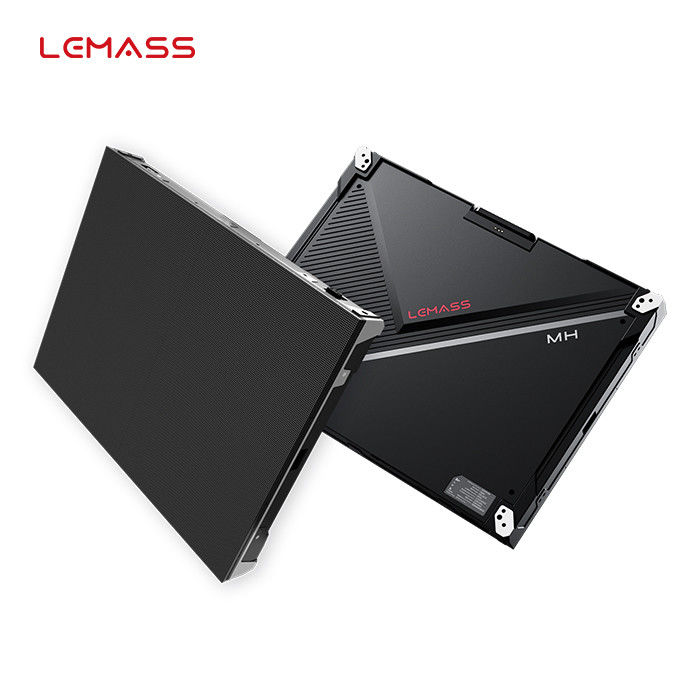

MH Series Cabinet - Thin and light panel:
The indoor LED display is mainly developed to be portable. Therefore, it has a thin and lightweight panel that makes transportation quick, convenient, and straightforward. The indoor fixed LED display can be easily placed on a cabinet that has a sturdy structure.
Quick Detail:
· High strength aluminum alloy structure
· Multi-directional adjustment
· All-round cooling system
· 160° ultra-wide viewing angle
· High refresh and high quality PWM drive IC
· Easy to install and maintain
Specifications:
| Parameter Item | MA2.5-G |
| Pixel Pitch (mm) | 2.5 |
| Pixel Density (pixels/sqm) | 160,000 |
| Module Resolution | 128×64 |
| Cabinet Resolution | 256×192 |
| Mask | No |
| Lamp Type | SMD2121 |
| Module Size (mm) | 320×160 |
| Module Weight (kg) | 0.47±0.05 |
| Cabinet Size (mm) | 640×480×65.5 |
| Cabinet Weight (kg) | 7.7±0.05 |
| Brightness (cd/sqm) | 650 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | Front IP31, Rear IP43 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤370,Ave:≤125 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -20～+40 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

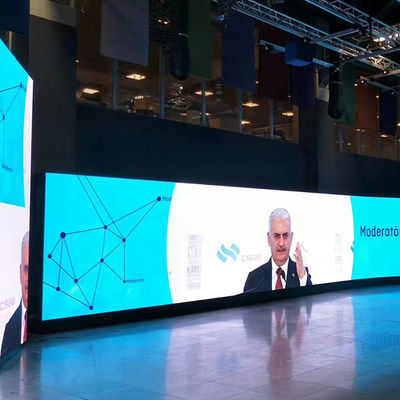

MH is widely used in commercial advertising, shopping malls, large occasions, etc.
