Multi Directional Indoor LED Screen Display P1.2 With 750cd/Sqm Brightness
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.2 Indoor LED Display Cabinet |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Cabinet packing (size: L543mm*W191mm*H696mm) |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.2 Indoor LED Display Cabinet | Size: | 640×480mm |
|---|---|---|---|
| Pixel Pitch: | 1.25mm | Resolution: | 512×384 |
| Features: | High Strength Aluminum Alloy Structure | Brightness: | 750cd/sqm |
| Lamp Type: | SMD1010 | Weight: | 7.7±0.05kg |
| High Light: | Indoor LED Screen Display P1.2,Indoor LED Screen Display 750cd/Sqm,Multi Directional P1.2 led screen |
||
Product Description

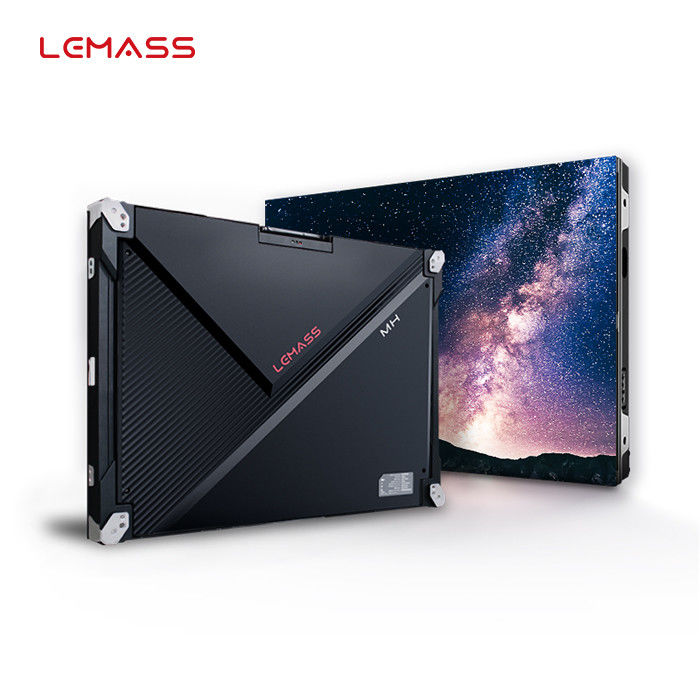

P1.2 Indoor LED Display Cabinet 640*480mm MH Series Die-Casting Aluminum Structure
Description:
MH Series cabinet indoor (aluminum alloy structure, display ratio 4:3) design is inspired by Hex in League of Legends which is a fusion of magic and technology, the design of MH embodies the strength and imagination of all Lemass staff, with convenient assembly and maintenance, AI display indoor performance. MH is widely used in commercial advertising, shopping malls, large occasions, etc.
Quick Detail:
· High strength aluminum alloy structure
· Multi-directional adjustment
· All-round cooling system
· 160° ultra-wide viewing angle
· High refresh and high quality PWM drive IC
· Easy to install and maintain
Specifications:
| Parameter Item | MA1.2-G |
| Pixel Pitch (mm) | 1.25 |
| Pixel Density (pixels/sqm) | 640,000 |
| Module Resolution | 256×128 |
| Cabinet Resolution | 512×384 |
| Mask | No |
| Lamp Type | SMD1010 |
| Module Size (mm) | 320×160 |
| Module Weight (kg) | 0.47±0.05 |
| Cabinet Size (mm) | 640×480×65.5 |
| Cabinet Weight (kg) | 7.7±0.05 |
| Brightness (cd/sqm) | 750 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | Front IP31, Rear IP43 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤460,Ave:≤160 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -20～+40 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

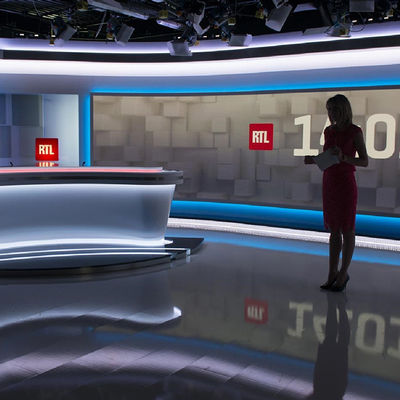

MH is widely used in commercial advertising, shopping malls, large occasions, etc.
