SMD1515 P1.8 Concert LED Screen , LED Wall Screen Display Indoor With Seamless Connection
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.8 indoor concert led screen display |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Cabinet packing (size: L543mm*W191mm*H696mm) |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.8 Indoor Concert Led Screen Display | Size: | 640×480mm |
|---|---|---|---|
| Pixel Pitch: | 1.86mm | Resolution: | 344×258 |
| Features: | High Strength Aluminum Alloy Structure | Brightness: | 650cd/sqm |
| Lamp Type: | SMD1515 | Weight: | 7.7±0.05kg |
| High Light: | P1.8 Concert LED Screen,SMD1515 Concert LED Screen,Seamless LED Wall Screen Display Indoor |
||
Product Description
P1.8 indoor concert led screen display 640*480mm MH Series seamless connection
Description:

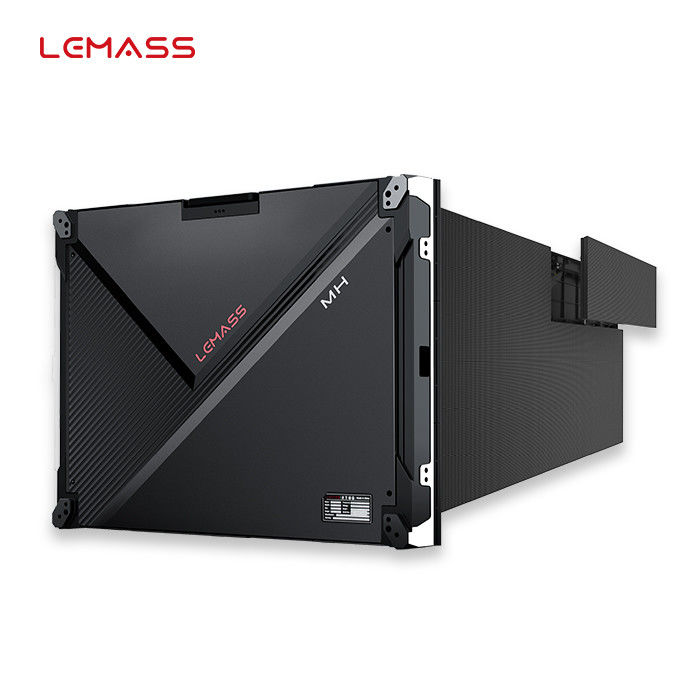

MH Series Cabinet - Safe installation and maintenance:
The indoor LED display is effortless to install and maintain. It is made in a way to install and maintain it safely. The LED display is usually established by removing four corners modules. Thus, the LED display’s whole thickness is basically the thickness of the cabinet. In terms of maintenance, all the parts of the LED display can be maintained, for example, power supply, receiving cards, LED modules, and cables, with the magnets attached to the LED’s backside’s modules.
Quick Detail:
· High strength aluminum alloy structure
· Multi-directional adjustment
· All-round cooling system
· 160° ultra-wide viewing angle
· High refresh and high quality PWM drive IC
· Easy to install and maintain
Specifications:
| Parameter Item | MA1.8-A |
| Pixel Pitch (mm) | 1.86 |
| Pixel Density (pixels/sqm) | 288,906 |
| Module Resolution | 172×86 |
| Cabinet Resolution | 344×258 |
| Mask | No |
| Lamp Type | SMD1515 |
| Module Size (mm) | 320×160 |
| Module Weight (kg) | 0.47±0.05 |
| Cabinet Size (mm) | 640×480×65.5 |
| Cabinet Weight (kg) | 7.7±0.05 |
| Brightness (cd/sqm) | 650 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | Front IP31, Rear IP43 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤370,Ave:≤125 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -20～+40 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:
MH is widely used in commercial advertising, shopping malls, large occasions, etc.
