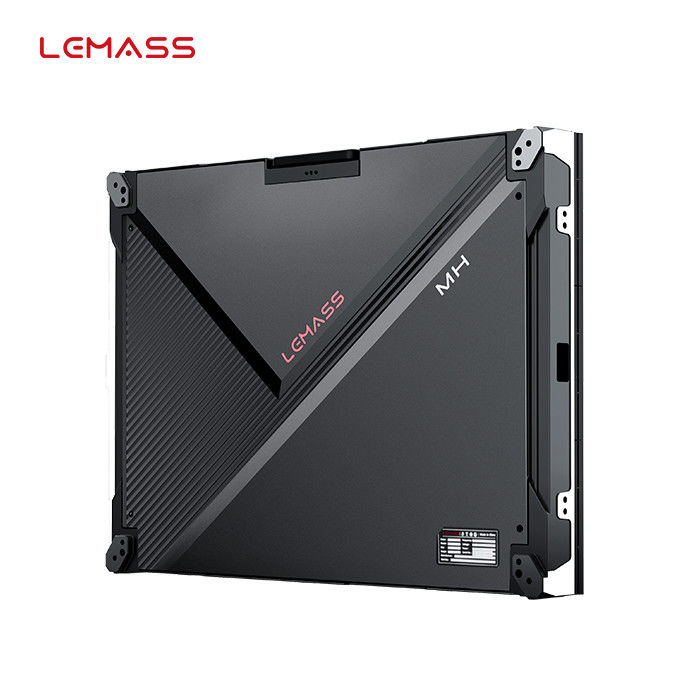

SMD 1212 Indoor LED Cabinet Display P1.5 With Aluminum Alloy Structure
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.5 indoor led top quality screen |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Cabinet packing (size: L543mm*W191mm*H696mm) |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.5 Indoor Led Top Quality Screen | Size: | 640×480mm |
|---|---|---|---|
| Pixel Pitch: | 1.538mm | Resolution: | 416×312 |
| Features: | High Strength Aluminum Alloy Structure | Brightness: | 650cd/sqm |
| Lamp Type: | SMD1212 | Weight: | 7.7±0.05kg |
| High Light: | 1212 Indoor LED Cabinet,Indoor LED Cabinet P1.5,Aluminum Alloy P1.5 LED display |
||
Product Description
P1.5 indoor led top quality screen 640*480mm MH Series easy to install and maintain
Description:
MH Series Cabinet - Seamless connection:
The LED displays are so widely used and needed that the innovation in the display field is unstoppable. With the increased demand for indoor LED displays, improvements were made rapidly. However, the most common drawbacks of the indoor LED display were the brightness and seams. Therefore, when you put the Uniview LED display screen collectively as an enormous LED video wall with a larger modular size of LED and brightness variations, you have an ideal choice for a seamless connection. It ultimately results in decreased video glitches.
Quick Detail:
· High strength aluminum alloy structure
· Multi-directional adjustment
· All-round cooling system
· 160° ultra-wide viewing angle
· High refresh and high quality PWM drive IC
· Easy to install and maintain
Specifications:
| Parameter Item | MA1.5-A |
| Pixel Pitch (mm) | 1.538 |
| Pixel Density (pixels/sqm) | 422,500 |
| Module Resolution | 208x104 |
| Cabinet Resolution | 416×312 |
| Mask | Optional |
| Lamp Type | SMD1212 |
| Module Size (mm) | 320×160 |
| Module Weight (kg) | 0.47±0.05 |
| Cabinet Size (mm) | 640×480×65.5 |
| Cabinet Weight (kg) | 7.7±0.05 |
| Brightness (cd/sqm) | 650 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | Front IP31, Rear IP43 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤370,Ave:≤125 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -20～+40 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

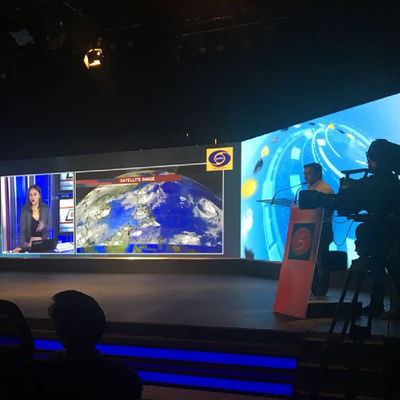

MH is widely used in commercial advertising, shopping malls, large occasions, etc.
