P1.2 Indoor LED Advertising Screens Display Multifunctional 640×480mm Size
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.2 indoor broadcast led display screen |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Cabinet packing (size: L543mm*W191mm*H696mm) |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.2 Indoor Broadcast Led Display Screen | Size: | 640×480mm |
|---|---|---|---|
| Pixel Pitch: | 1.25mm | Resolution: | 512×384 |
| Features: | High Strength Aluminum Alloy Structure | Brightness: | 650cd/sqm |
| Lamp Type: | SMD1010 | Weight: | 7.7±0.05kg |
| High Light: | P1.2 Indoor LED Advertising Screens,480mm Indoor LED Advertising Screens,Multifunctional P1.2 LED Display |
||
Product Description

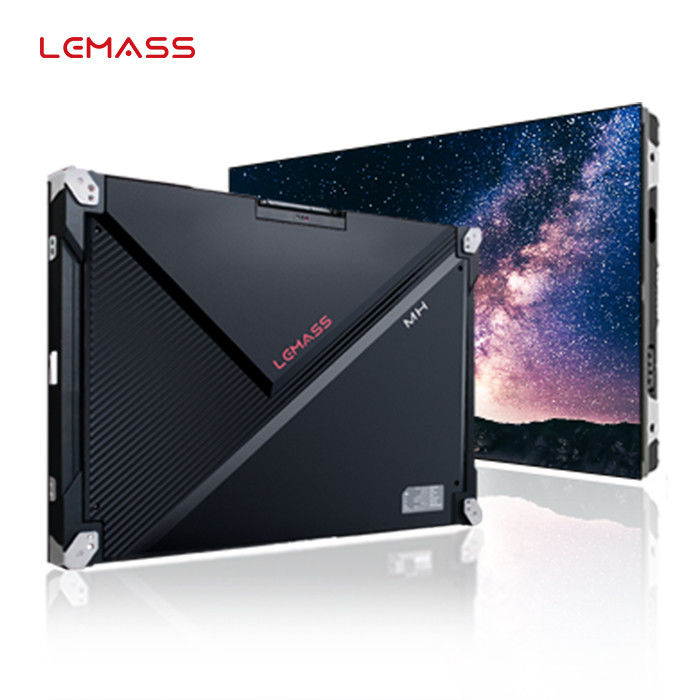

P1.2 indoor broadcast led display screen 640*480mm MH Series light weight and thin
Description:
MH Series Cabinet - Better visibility:
The indoor LED display can offer many purposes with increased and better visibility. It uses high-quality technology the increases the sharpness, picture resolution and provides better pixels for remarkable visual deliverance. These display screens also hold the ability to view the action from different angles. The LED display comes with ultimate clarity and vibrancy that it can be additionally used in a concert, conference, any festival, or special occasion.
Quick Detail:
· High strength aluminum alloy structure
· Multi-directional adjustment
· All-round cooling system
· 160° ultra-wide viewing angle
· High refresh and high quality PWM drive IC
· Easy to install and maintain
Specifications:
| Parameter Item | MA1.2-A |
| Pixel Pitch (mm) | 1.25 |
| Pixel Density (pixels/sqm) | 640,000 |
| Module Resolution | 256×128 |
| Cabinet Resolution | 512×384 |
| Mask | No |
| Lamp Type | SMD1010 |
| Module Size (mm) | 320×160 |
| Module Weight (kg) | 0.47±0.05 |
| Cabinet Size (mm) | 640×480×65.5 |
| Cabinet Weight (kg) | 7.7±0.05 |
| Brightness (cd/sqm) | 650 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | Front IP31, Rear IP43 |
| Intelligent Storage | AI Intelligent Storage |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤460,Ave:≤155 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -20～+40 |
| Storage Temp (℃) | -25~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

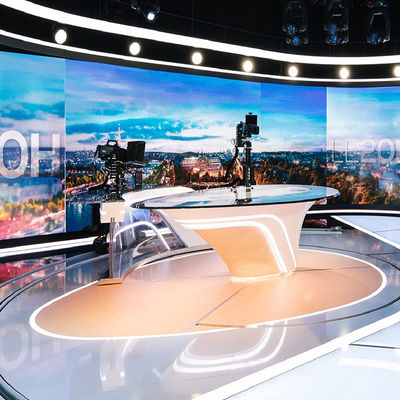

MH is widely used in commercial advertising, shopping malls, large occasions, etc.
