640×640mm Indoor LED Cabinet Screen Multifunctional With Aluminum Alloy Structure
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.5 Indoor control room LED screen cabinet |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Cabinet packing (size: L543mm*W191mm*H696mm) |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.5 Indoor Control Room LED Screen Cabinet | Size: | 640×640mm |
|---|---|---|---|
| Pixel Pitch: | 1.538mm | Resolution: | 416x416 |
| Features: | High Strength Aluminum Alloy Structure | Brightness: | ≥450cd/sqm |
| Lamp Type: | SMD1212 | Weight: | 9.7±0.5kg |
| High Light: | Aluminum Alloy Indoor LED Cabinet,Indoor LED Cabinet Multifunctional,640mm LED screen cabinet |
||
Product Description
P1.5 Indoor control room LED screen cabinet 640*640mm MH Plus strength aluminum alloy
Description:
Service and Support:
At Constant, we offer clients several tiers of technical service and support, from on-demand time and materials to multi-year contracts. Additionally, preventative maintenance and extended hardware warranties are made available to those we serve. We want you to be happy, and not just when we install your visual wall and walk out the door, but when your visual wall becomes an asset to your organization for years to come. We have care plans that can protect you in urgent situations, and ensure a long life for your visual wall.
Quick Detail:

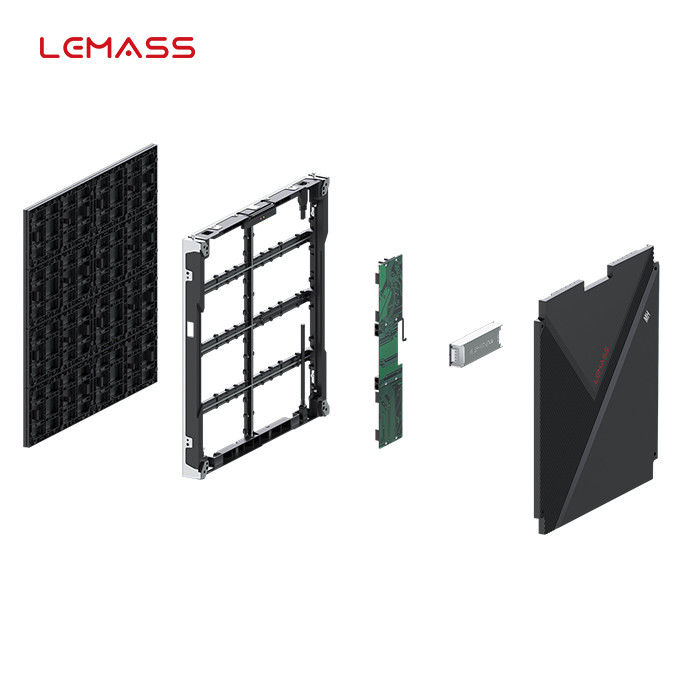

· High strength aluminum alloy structure
· Multi-directional adjustment
· All-round cooling system
· 160° ultra-wide viewing angle
· High refresh and high quality PWM drive IC
· Easy to install and maintain
Specifications:
| Parameter Item | MH1.5-G Plus |
| Pixel Pitch (mm) | 1.538 |
| Pixel Density (pixels/sqm) | 422,500 |
| Module Resolution | 208x104 |
| Cabinet Resolution | 416x416 |
| Mask | Optional |
| Lamp Type | SMD1212 |
| Module Size (mm) | 320×160 |
| Module Weight (kg) | 0.47±0.05 |
| Cabinet Size (mm) | 640x640x74 |
| Cabinet Weight (kg) | 9.7±0.5 |
| Brightness (cd/sqm) | ≥450 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | Front IP31, Rear IP43 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤490,Ave:≤165 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -20~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

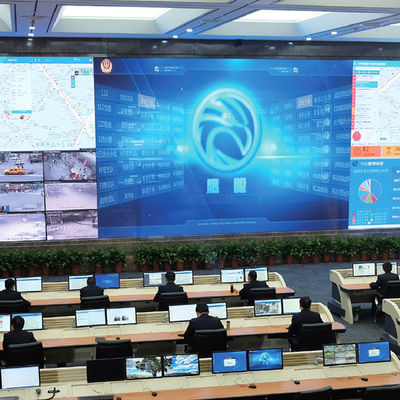

MH is widely used in commercial advertising, shopping malls, large occasions, etc.
