P1.2 LED Indoor Video Wall Display SMD 1010 Multi Directional For Commercial
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.2 Indoor ratio 1:1 LED wall cabinet |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Cabinet packing (size: L543mm*W191mm*H696mm) |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.2 Indoor Ratio 1:1 LED Wall Cabinet | Size: | 640×640mm |
|---|---|---|---|
| Pixel Pitch: | 1.25mm | Resolution: | 512x512 |
| Features: | High Strength Aluminum Alloy Structure | Brightness: | ≥500cd/sqm |
| Lamp Type: | SMD1010 | Weight: | 9.7±0.5kg |
| High Light: | P1.2 Indoor Video Wall Display,1010 Indoor Video Wall Display,SMD indoor led video display |
||
Product Description

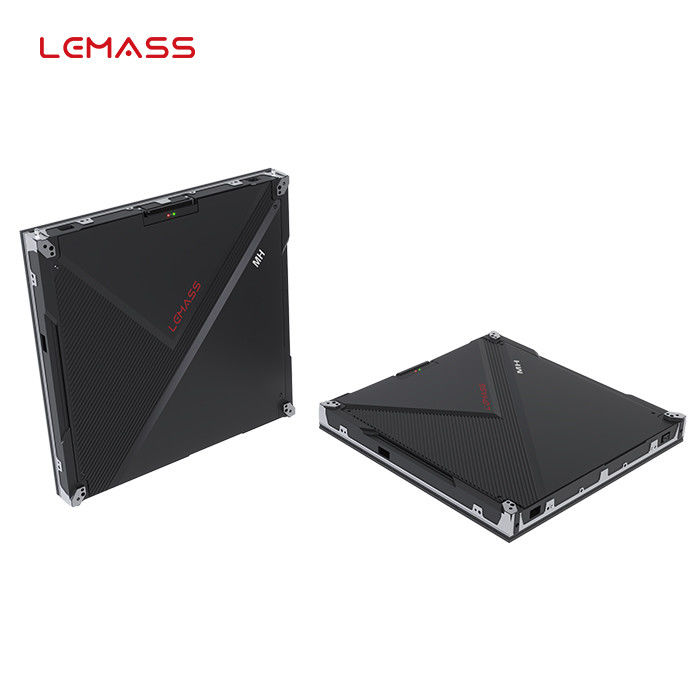

P1.2 Indoor ratio 1:1 LED wall cabinet 640*640mm MH Plus die-cast frame
Description:
Expert Installation:
Your video wall system will be installed and integrated by our expert team of experienced programmers and technicians. We provide turn-key video walls so that your A/V solution is ready to run from day 1. We’re not satisfied until you’re satisfied, and satisfaction can’t be achieved until your visual wall solution is up and running seamlessly. We’ll never leave you with the idea that “the kinks will work themselves out” or “you’ll get used to it.” We are there to set you up, train you in how to use it, and make for the best visual wall experience possible.
Quick Detail:
· High strength aluminum alloy structure
· Multi-directional adjustment
· All-round cooling system
· 160° ultra-wide viewing angle
· High refresh and high quality PWM drive IC
· Easy to install and maintain
Specifications:
| Parameter Item | MH1.2-G Plus |
| Pixel Pitch (mm) | 1.25 |
| Pixel Density (pixels/sqm) | 640,000 |
| Module Resolution | 256×128 |
| Cabinet Resolution | 512x512 |
| Mask | No |
| Lamp Type | SMD1010 |
| Module Size (mm) | 320×160 |
| Module Weight (kg) | 0.47±0.05 |
| Cabinet Size (mm) | 640x640x74 |
| Cabinet Weight (kg) | 9.7±0.5 |
| Brightness (cd/sqm) | ≥500 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 2500~10000 |
| Control System | Synchronous Control |
| Protection Level | Front IP31, Rear IP43 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | 1920/3840(Optional) |
| Working Voltage | AC:100V~240V, 50/60Hz |
| Power Consumption (W/ m²) | Max:≤490,Ave:≤165 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+40 |
| Storage Temp (℃) | -20~+60 |
| Humidity Range(Rh) | 10%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

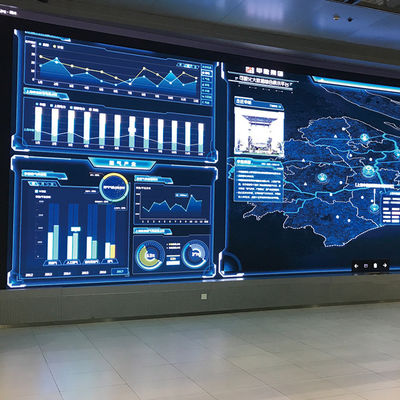

MH is widely used in commercial advertising, shopping malls, large occasions, etc.
