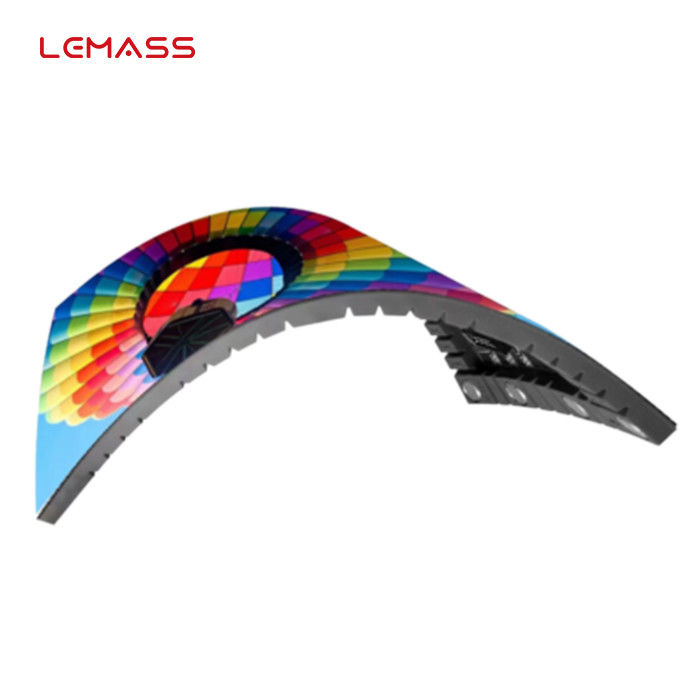

Commercial P3 LED Module , Flexible Curved LED Panels 240×120mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P3.0 flexible LED module 240*120mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P3.0 Flexible LED Module 240*120mm | Size: | 240×120mm |
|---|---|---|---|
| Pixel Pitch: | 2.5mm | Resolution: | 80×40 |
| Features: | Customized Surface Soft Shaping | Brightness: | ≥900cd/sqm |
| Lamp Type: | SMD2121 | Weight: | 0.2±0.05 |
| High Light: | Commercial P3 LED Module,Flexible P3 LED Module,120mm curved led panels |
||
Product Description
P3.0 flexible LED module 240*120mm commercial LED creative display LMS-Soft sustainable reliability
Description:
Big angle and high flexibility: The flexible module LED display uses a flexible circuit board for the material, and the mask is made of silica gel. The module is flexible, and various screen shapes can be customized at will, such as cylindrical, arched, wavy, convex, concave, etc., to create an incredible and incredible display effect.
Quick Detail:
· With flexible soft display
· 160° ultra-wide viewing angle
· Surface shaping structure
· 14bit ultra-high grayscale
· High refresh rate 3840Hz
· Support module customization
Specifications:
| Parameter Item | LMS-Soft3.0B-Y |
| Pixel Pitch (mm) | 3.0 |
| Pixel Density (pixels/sqm) | 111,111 |
| Module Resolution | 80×40 |
| Mask | No |
| Lamp Type | SMD2121 |
| Module Size (mm) | 240×120×8.5 |
| Module Weight (kg) | 0.2±0.05 |
| Brightness (cd/sqm) | ≥900 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 8000~9500 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | ≥1920 |
| Working Voltage | AC:100V~240V±10% |
| Power Consumption (W/ m²) | Max:≤525,Ave:≤175 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+50 |
| Storage Temp (℃) | -20～+60 |
| Humidity Range(Rh) | 20%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:
Widely used in stage screens, exhibition halls, shopping malls and other creative surface displays, etc.
