Curved Flexible Soft LED Module P1.5 Multifunctional For Shopping Malls
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.5 soft LED module display |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.5 Soft LED Module Display | Size: | 240×120mm |
|---|---|---|---|
| Pixel Pitch: | 1.579mm | Resolution: | 152×76 |
| Features: | Customized Surface Soft Shaping | Brightness: | ≥600cd/sqm |
| Lamp Type: | SMD1010 | Weight: | 0.203±0.05kg |
| High Light: | Soft LED Module P1.5,Soft LED Module Multifunctional,Flexible Curved LED Module |
||
Product Description

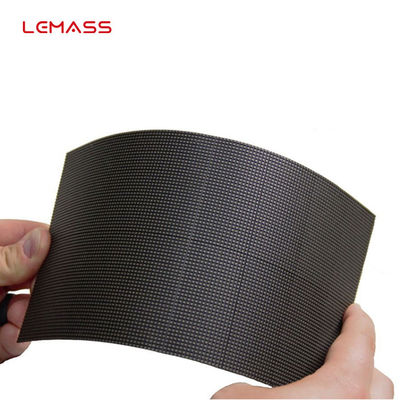

P1.5 soft LED module display 240*120mm LMS-Soft customized flexible screen
Description:
Compared with the traditional PCB material, it has higher hardness. And the flexible FPC circuit board made of flexible insulating base material has strong anti-compression and anti-torsion ability, which can better solve problems of installing displays in irregular-shaped corners and places. Most of the installation methods of LED flexible modules are magnetic column suction, which is convenient and quick to install, and also easy to shape. The installation method of magnetic suction is as simple as the conventional indoor screen installation method. Quick joints are used on connection wires between bodies which is firm and reliable to save a lot of efforts in installation.
Quick Detail:
· With flexible soft display
· 160° ultra-wide viewing angle
· Surface shaping structure
· 14bit ultra-high grayscale
· High refresh rate 3840Hz
· Support module customization
Specifications:
| Parameter Item | LMS-Soft1.5B-X |
| Pixel Pitch (mm) | 1.579 |
| Pixel Density (pixels/sqm) | 401,111 |
| Module Resolution | 152×76 |
| Mask | No |
| Lamp Type | SMD1010 |
| Module Size (mm) | 240×120×8.6 |
| Module Weight (kg) | 0.203±0.05 |
| Brightness (cd/sqm) | ≥600 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 3000~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | ≥3840 |
| Working Voltage | AC:100V~240V±10% |
| Power Consumption (W/ m²) | Max:≤735,Ave:≤245 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+50 |
| Storage Temp (℃) | -20～+60 |
| Humidity Range(Rh) | 20%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

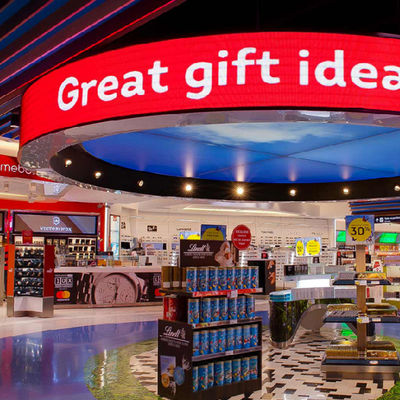

Widely used in stage screens, exhibition halls, shopping malls and other creative surface displays, etc.
