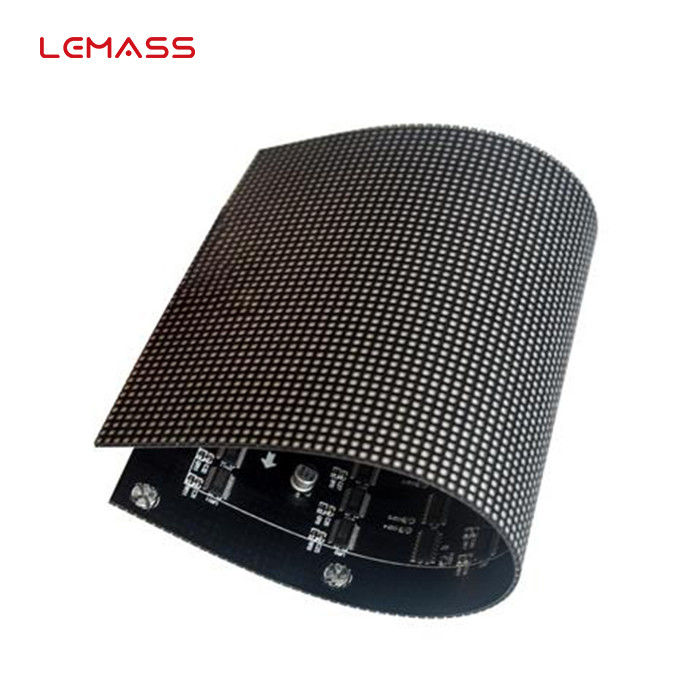

Flexible P2.5 Curved LED Display Module 240×120mm For Airport
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P2.5 flexible LED module 240*120mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P2.5 Flexible LED Module 240*120mm | Size: | 240×120mm |
|---|---|---|---|
| Pixel Pitch: | 2.5mm | Resolution: | 96×48 |
| Features: | Customized Surface Soft Shaping | Brightness: | ≥900cd/sqm |
| Lamp Type: | SMD2121 | Weight: | 0.2±0.05 |
| High Light: | P2.5 Curved LED Display,Flexible Curved LED Display,Airport curved led module |
||
Product Description
P2.5 flexible LED module 240*120mm Airport LED screen LMS-Soft cost-effective
Description:
Ultra Flexible: Flexible module size, and screen size can be customized according to led event project demands.
Super Thin & Light: Soft, thin and light features are suitable to create more curved led screen effects possibilities.
Seamless Design: Natural to create native High Refresh led screens, also ensures high curved led wall flatness.
Quick Detail:
· With flexible soft display
· 160° ultra-wide viewing angle
· Surface shaping structure
· 14bit ultra-high grayscale
· High refresh rate 3840Hz
· Support module customization
Specifications:
| Parameter Item | LMS-Soft2.5B-Y |
| Pixel Pitch (mm) | 2.5 |
| Pixel Density (pixels/sqm) | 160,000 |
| Module Resolution | 96×48 |
| Mask | No |
| Lamp Type | SMD2121 |
| Module Size (mm) | 240×120×8.5 |
| Module Weight (kg) | 0.2±0.05 |
| Brightness (cd/sqm) | ≥900 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 3000~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | ≥1920 |
| Working Voltage | AC:100V~240V±10% |
| Power Consumption (W/ m²) | Max:≤630,Ave:≤210 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+50 |
| Storage Temp (℃) | -20～+60 |
| Humidity Range(Rh) | 20%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

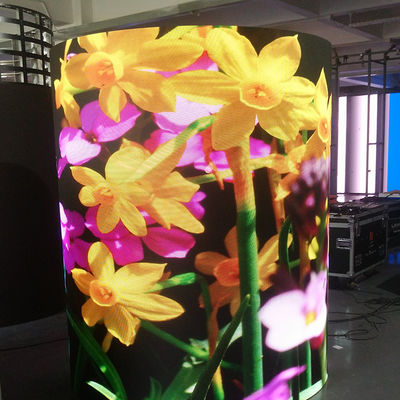

Widely used in stage screens, exhibition halls, shopping malls and other creative surface displays, etc.
