P2 Soft Flexible LED Display Module For Indoor Exhibition 240×120mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P2.0 flexible LED module 240*120mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P2.0 Flexible LED Module 240*120mm | Size: | 240×120mm |
|---|---|---|---|
| Pixel Pitch: | 2.0mm | Resolution: | 120×60 |
| Features: | Customized Surface Soft Shaping | Brightness: | ≥900cd/sqm |
| Lamp Type: | SMD1515 | Weight: | 0.22±0.05 |
| High Light: | P2 Flexible LED Display Module,120mm Flexible LED Display Module,Exhibition Indoor LED Module |
||
Product Description
P2.0 flexible LED module 240*120mm indoor exhibition screen LMS-Soft colorful effect
Description:

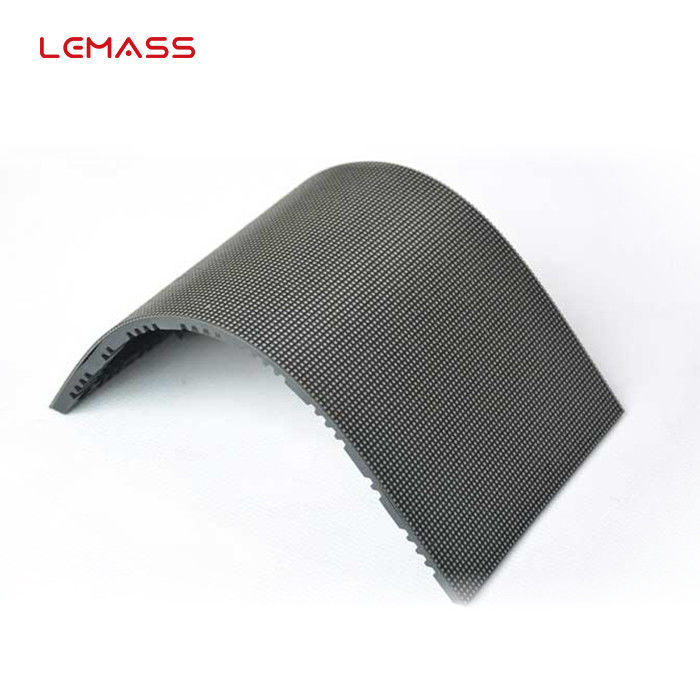

Flexible LED screen displays are ideal for special-shaped led screens. They are designed for artistic and creative customized LED Screen applications. Made of flexible PCB board, it's soft to fit into any curved surface. To make an artistic design, It's ideal to be used in museums, galleries, studios, shopping malls, stadiums, hotel lobbies, airports, etc.
Quick Detail:
· With flexible soft display
· 160° ultra-wide viewing angle
· Surface shaping structure
· 14bit ultra-high grayscale
· High refresh rate 3840Hz
· Support module customization
Specifications:
| Parameter Item | LMS-Soft2.0B-Y |
| Pixel Pitch (mm) | 2.0 |
| Pixel Density (pixels/sqm) | 250,000 |
| Module Resolution | 120×60 |
| Mask | No |
| Lamp Type | SMD1515 |
| Module Size (mm) | 240×120×8.5 |
| Module Weight (kg) | 0.22±0.05 |
| Brightness (cd/sqm) | ≥900 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 3000~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | ≥2880 |
| Working Voltage | AC:100V~240V±10% |
| Power Consumption (W/ m²) | Max:≤630,Ave:≤210 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+50 |
| Storage Temp (℃) | -20～+60 |
| Humidity Range(Rh) | 20%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

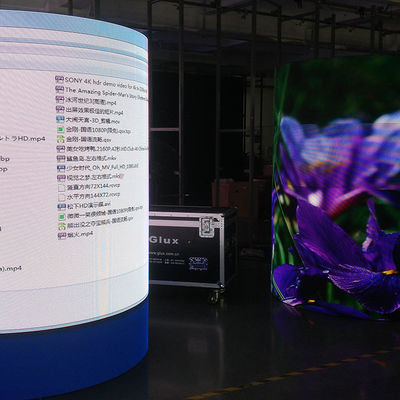

Widely used in stage screens, exhibition halls, shopping malls and other creative surface displays, etc.
