Indoor P1.8 Curved LED Display 240×120mm With 3840Hz High Refresh Rate
Product Details:
| Place of Origin: | China |
| Brand Name: | Lemass |
| Certification: | RoHS, FCC, CE, CNAS, BIS, SGS |
| Model Number: | P1.8 indoor curved LED screen panels |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton Size: L506mm*W374mm*H384mm Weight: 27.05kg |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10KK pixels/month |
|
Detail Information |
|||
| Name: | P1.8 Indoor Curved LED Screen Panels | Size: | 240×120mm |
|---|---|---|---|
| Pixel Pitch: | 1.875mm | Resolution: | 128×64 |
| Features: | Customized Surface Soft Shaping | Brightness: | ≥750cd/sqm |
| Lamp Type: | SMD1212 | Weight: | 0.216±0.05kg |
| High Light: | Curved LED Display P1.8,3840Hz Curved LED Display,Curved P1.8 LED Display |
||
Product Description

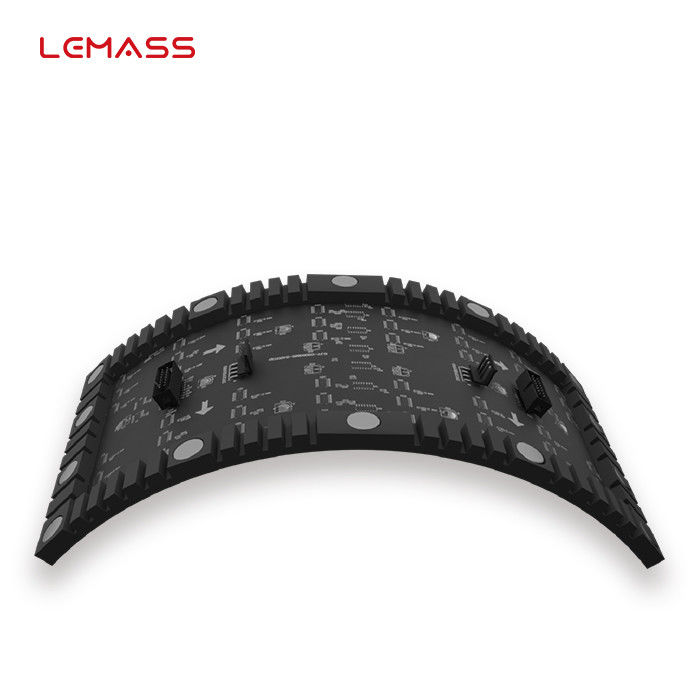

P1.8 indoor curved LED screen panels 240*120mm LMS-Soft 160° ultra-wide viewing angle
Description:
With good ductility, it can be arbitrarily shaped, of which the cylindrical screen, since it has high brush performance, can be hoisted, mounted, etc., to maximize the coordination with the requirements of the current sound. Advanced digital video processing is adopted. Plus, it also applies technology distributed scanning, 360-degree high-definition display, modular design, constant current static drive, bright true-color output, clear and jitter-free picture; multi-picture soft module can also be realized, and via connection to the main control computer, pictures can be played simultaneously on three large ring-shaped LED display screens on the appearance of a cylinder. No matter from which perspective of the screen, audience can enjoy three identical and lifelike pictures.
Quick Detail:
· With flexible soft display
· 160° ultra-wide viewing angle
· Surface shaping structure
· 14bit ultra-high grayscale
· High refresh rate 3840Hz
· Support module customization
Specifications:
| Parameter Item | LMS-Soft1.8B-X |
| Pixel Pitch (mm) | 1.875 |
| Pixel Density (pixels/sqm) | 284,444 |
| Module Resolution | 128×64 |
| Mask | No |
| Lamp Type | SMD1212 |
| Module Size (mm) | 240×120×8.6 |
| Module Weight (kg) | 0.216±0.05 |
| Brightness (cd/sqm) | ≥750 |
| Gray Scale (Bit) | 12~16 |
| Color Temp (k) | 3000~10000 |
| Control System | Synchronous Control |
| Protection Level | IP31 |
| Intelligent Storage | No |
| Frame Frequency (Hz) | 50/60FPS~120FPS (3D) |
| Refresh Rate(Hz) | ≥3840 |
| Working Voltage | AC:100V~240V±10% |
| Power Consumption (W/ m²) | Max:≤630,Ave:≤210 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (℃) | -10～+50 |
| Storage Temp (℃) | -20～+60 |
| Humidity Range(Rh) | 20%~80%, Non-condensing |
| Pixel Correction | Brightness And Color Correction |
Details about the product:
Applications:

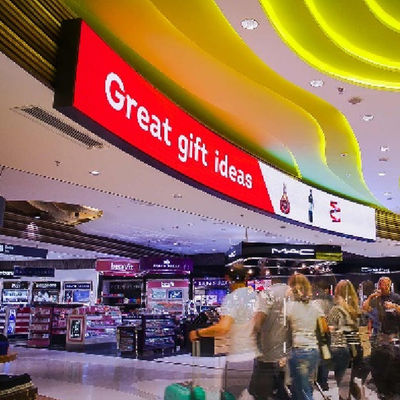

Widely used in stage screens, exhibition halls, shopping malls and other creative surface displays, etc.
